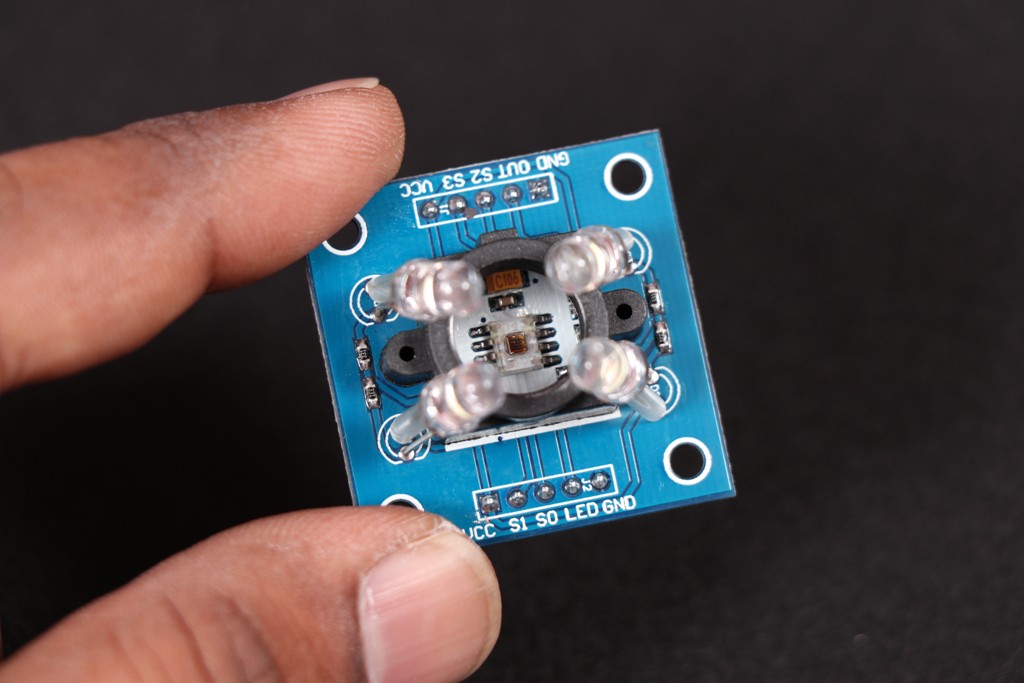

TCS3200 Color Recognition Sensor module

The TCS3200 color sensor can detect a wide variety of colors based on their wavelength. This sensor is especially useful for color recognition projects such as color matching, color sorting, test strip reading and much more.

Specifications

• Supply Operation (2.7V to 5.5V)
• High-Resolution Conversion of Light Intensity to Frequency
• Programmable Color and Full-Scale Output Frequency
• Power Down Feature
• Communicates Directly to 5V Microcontroller
• S0~S1: Output frequency scaling selection inputs
• S2~S3: Photodiode type selection inputs
• OUT Pin: Output frequency
• OE Pin: Output frequency enable pin (active low), can be impending when using
• Support LED lamp light supplement control
• PCB Dimension:34x34mm
• Module Weight: 8g.

Guide for TCS3200

Learn how to use the TCS3200 color sensor with Arduino: Guide for TCS230/TCS3200 Color Sensor with Arduino.
