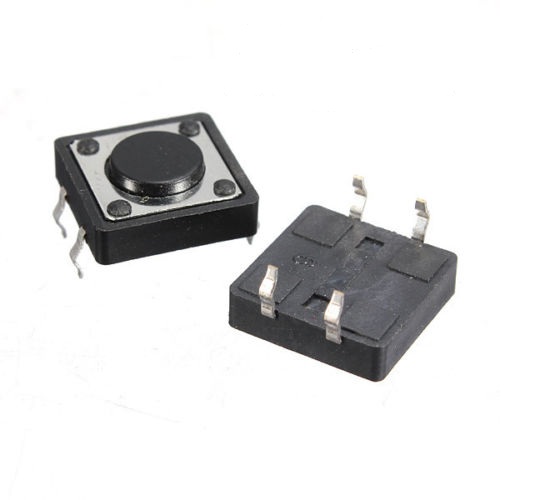

Tactile Switch 12x12x8mm

Miniature Single Pole Single Throw switches. These are high quality B3F momentary on switches. Perfect as a tactile reset switch. Mounts directly into standard bread boards.

Specification

• Temperature ：-25°~+-85°C
• Rated Load ：DC12V -1A
• Contact Resistance ：<=0.03Ω
• Withstand Voltage ：AC250 V (50Hz) /MIN
• Actuation Force ：3+-0.5N
• Insulation Resistance ：>=100MΩ
• Life：100000 times.
