STC-1000 AC220V Digital Temperature Controlled Thermostat Switch

This is a digital temperature controller thermostat module called STC-1000, designed to work with a 220V AC power supply. A temperature-measuring and controlling device with excellent accuracy and precision at an affordable price.
It provides a temperature control accuracy of 0.1 °C. The temperature can be adjusted between -50 °C and 99 °C.

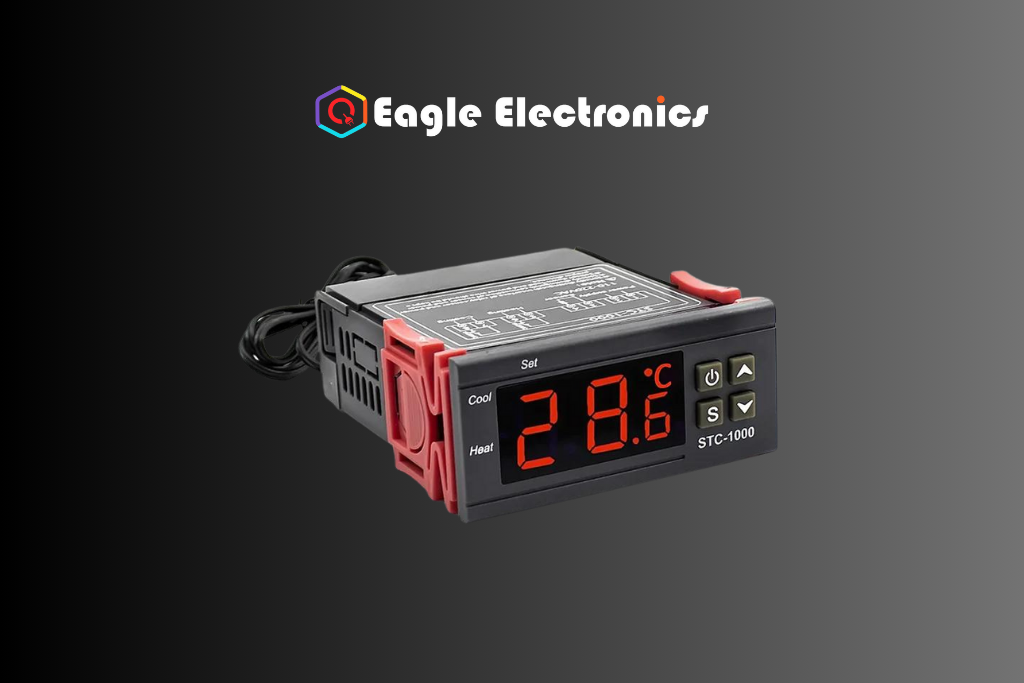

The LED screen displays the results clearly. The STC-1000 may be easily installed or integrated into an industrial control equipment panel, making it convenient and efficient.

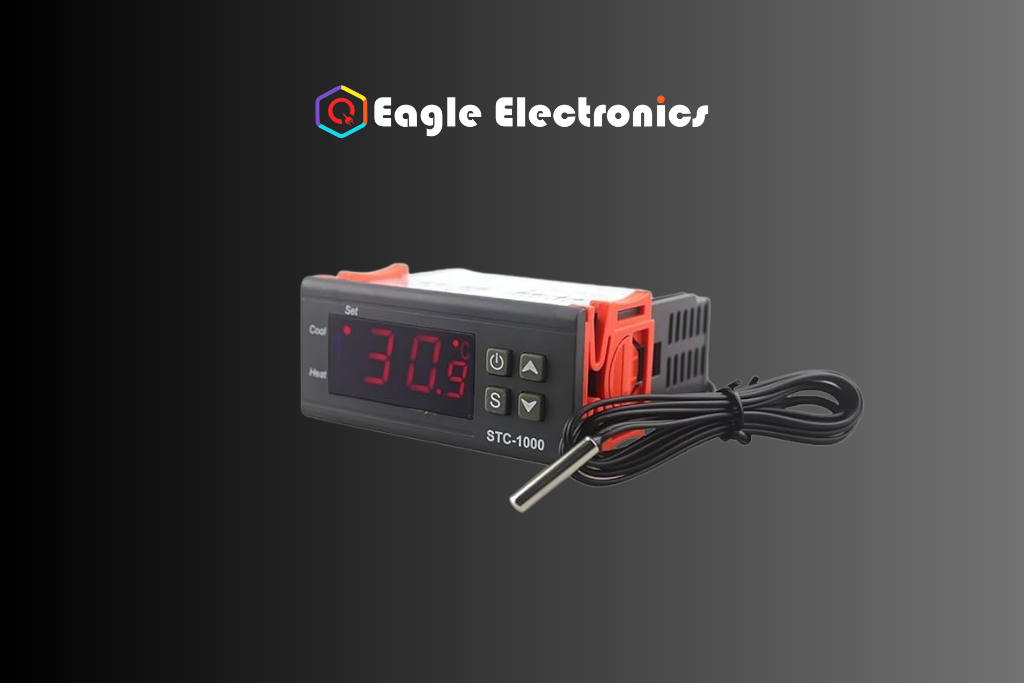

The device includes a 1M probe composed of stainless steel, which gives it waterproof properties and prevents easy rusting. In addition, all the fragile and sensitive parts are stored securely in a housing made of ABS material that is flame-retardant, non-toxic, and environmentally friendly.

Specifications

• Temperature measuring range: -50 – 99°C.
• Resolution: 0.1°C.
• Accuracy: ±1°C (-50 – 70°C).
• Sensor error delay: 1 minute.
• Power supply: 220VAC±10%, 50/60Hz
• Power consumption: ≤3W.
• Sensor: NTC sensor (1PC).
• Relay contact capacity: Cool 10A/250VAC; Heat 10A/250VAC.
• Ambient temperature: 0 – 60°C.
• Storage temperature: -30 – 75°C.
• Relative humidity: 20% – 85% (No condensate).

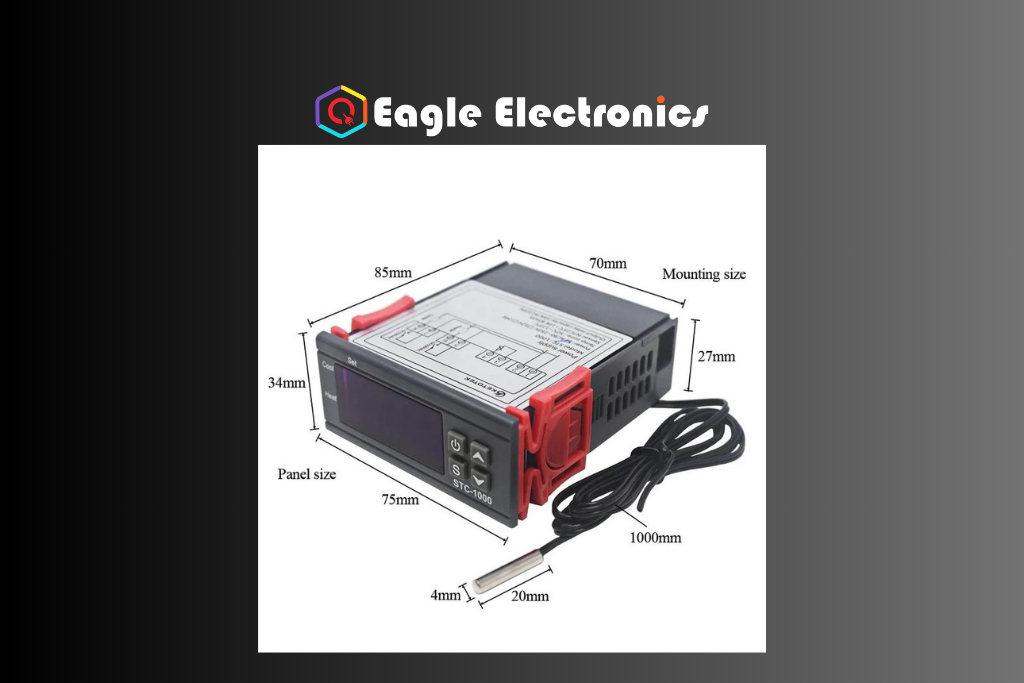

• Front panel size: 75(L) x 34.5(W)(mm)
• Mounting size: 71(L) x 29(W)mm.
• sensor length: 1m (include the probe)
• Product size75(L) x 34.5(W) x 85(D)mm.
• Weight: 100g.

Package Includes

• 1 x 220V Mini Digital Temperature Controller.
• 1 x Temperature sensor probe with cable.
• 1 x Instruction Manual.
