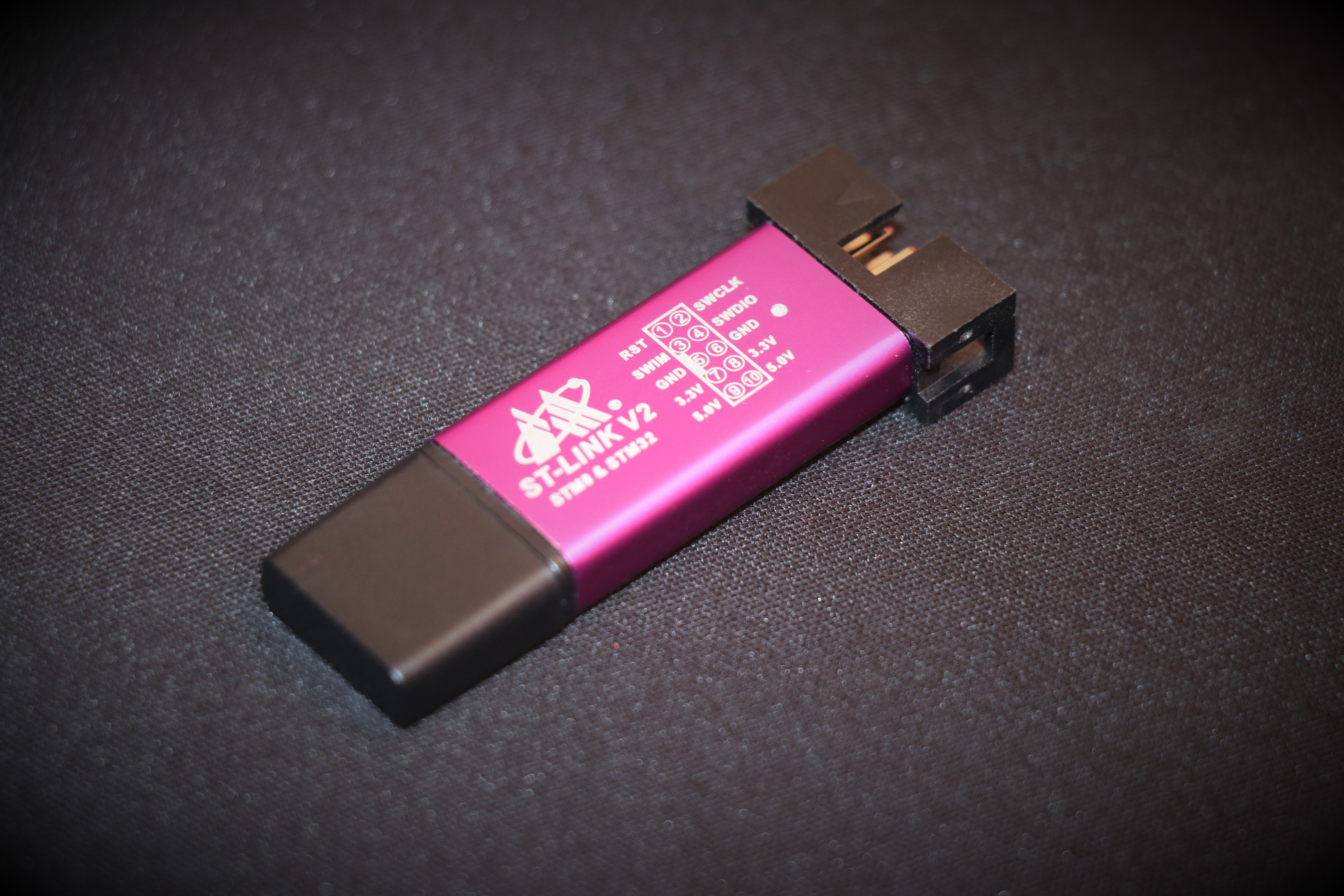

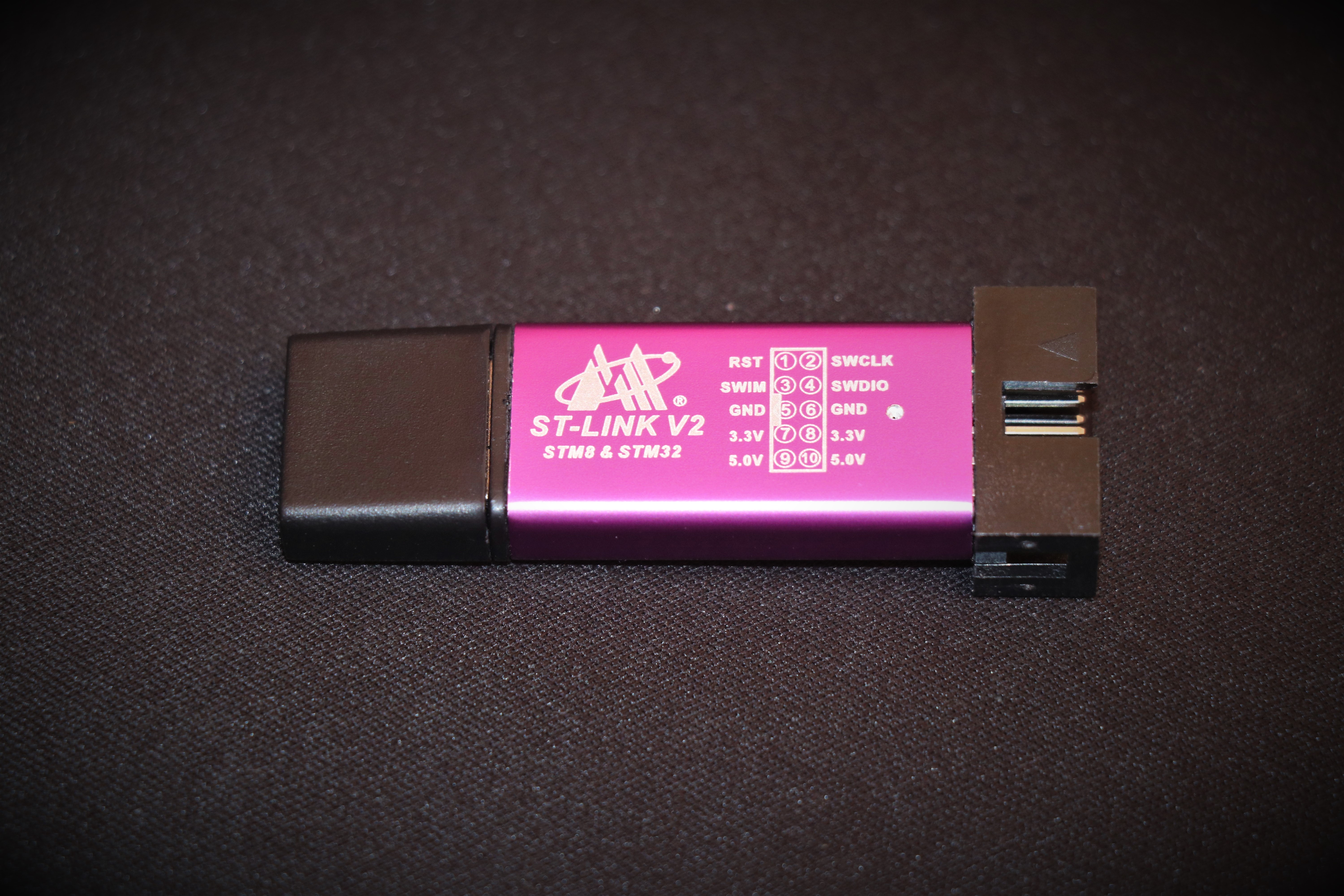

ST-Link V2 Programmer & Emulator

Mini ST-LINK / V2, fully consistent with the official function, support firmware upgrades, support the full range STM8 STM32 and a full range of download and debug.

Specification

• Mini ST-LINK/V2, Fully compatible with the official functions, support for automatic upgrades.
• Support all series of STM32 and STM8.
• Support all series of STM8 (SWIM interface), STM32 (SWD interface).
• Support the full range of STM32 SWD interface debugging, the interface is simple, fast, stable;
• Support the full range STM8 download debugging (such as IAR, STVD etc are supported);
• Supported software versions are as follows:
• ST-LINK Utility 2.0 and above
• IAR EWSTM8 V1.30 and above
• KEIL RVMDK V4.21 and above
• Support for automatic firmware upgrades to ensure follow-up support ST’s products.
• Only the U disk size, easy to carry, does not occupy space
• Two-channel power output 5V / 3.3V and easier to use
• On-board 500mA resettable fuse, short-circuit protection
• Output diode in series with, reverse connection protection
• Physical Dimension: 20.3mm x8.8mm x 56.7mm
• Weight: 9g.

Supported Devices

• STM32F100xx, STM32F101xx, STM32F102xx, STM32F103xx, STM32F105xx, STM32F107xx, STM32F2xxx, STM32F4xxx,
  STM32L15xx6, STM32L15xx8,STM32L15xxB, STM32L151xC, STM32L151xD, STM32L152xC, STM32L152xD, STM32L162xD,
  STM32TS60,
  STM32W108C8, STM32W108xB, STM32W108xC, STM32W108xZ
• STM8AF51x, STM8AF52x, STM8AF61x, STM8AF62x,STM8AH51x, STM8AH61x,
  STM8S003K3, STM8S003F3, STM8S005C6, STM8S005K6, STM8S007C8, STM8S103xx, STM8S105xx, STM8S207xx, STM8S208xx, STM8S903F3, STM8S903K3,
  STM8L101xx, STM8L15x, STM8L16x,
  STM8TL52x4,STM8TL53x4
