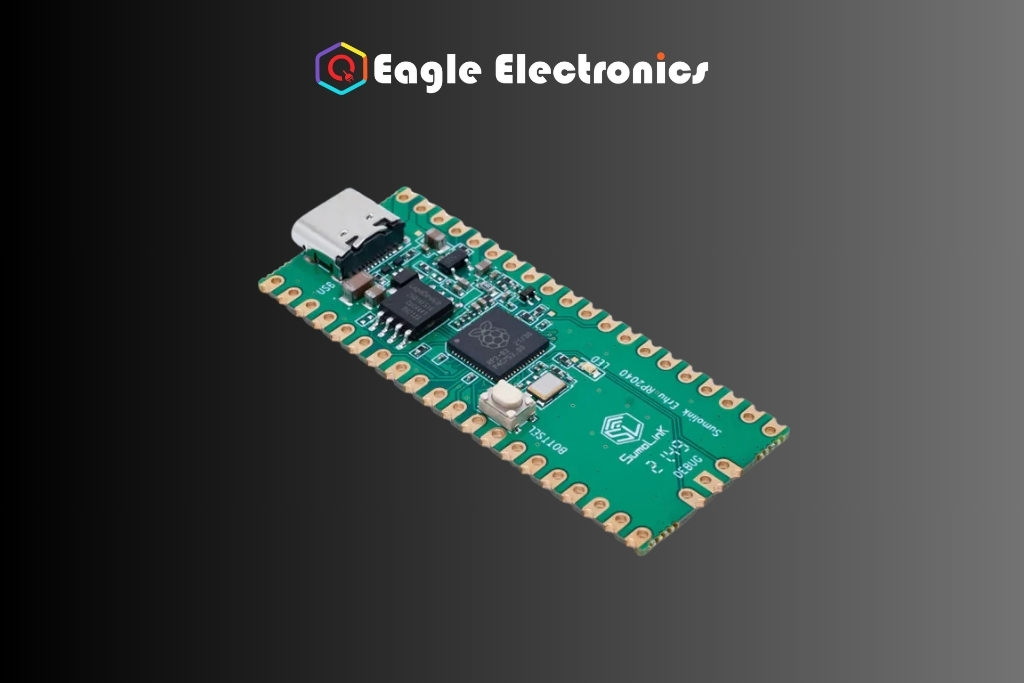

Raspberry pi PICO

The Raspberry Pi Pico series is a range of tiny, fast, and versatile boards built using RP2040, the flagship microcontroller chip designed by Raspberry Pi in the UK.

Specifications

•        Model: Raspberry Pi PICO
•        Operating Voltage (VDC): 1.8 ~ 5.5
•        Dual-core Arm Cortex M0+ processor, the flexible clock running up to 133 MHz
•       Interface: 2 x UART, 2 x I2C, 2 x SPI, up to 16 PWM channels
•        264KB of SRAM, and 2MB of onboard Flash memory
•        GPIO: 26 Pins
•        Clock Speed: 133 MHz
•        On Board Ports: Micro-USB 5V/2.5A DC Power Input Port
•        USB 1.1 with device and host support
•       8 × Programmable I/O (PIO) state machines for custom peripheral support
•        Drag-and-drop programming using mass storage over USB
•       Accurate clock and timer on-chip
•       Onboard temperature sensor
•        Accelerated floating-point libraries on-chip
•        Operating Temperature Range (°C): -20 to 85
•        Low-power sleep and dormant modes
•       Length (mm): 51
•       Width (mm):21
•       Height (mm):4
•       Weight: 3g.
