Product details

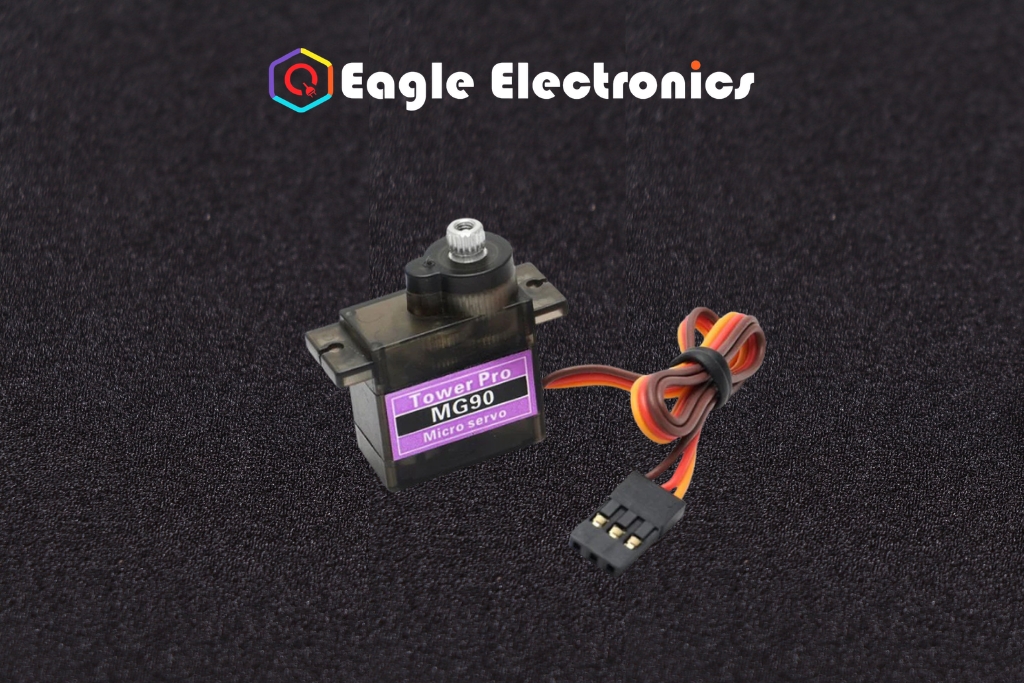

With its remarkable 2.2 kg/cm torque and quick response times, the MG90S Mini Servo Motor (180 Degree) is a great choice for working on RC planes, robotic arms, microrobots, and more. It is made for various applications. It can easily fit into even the smallest locations thanks to its small size.
The MG90S is renowned for its dependability due to its dust and water resistance. The JR servo plug is compatible with Futaba connectors and has three wires.
It provides quick and accurate motions with a working speed of 0.1 seconds/60 degrees at 4.8V and 0.08 seconds/60 degrees at 6V, operating efficiently in the voltage range of 4.8-6.6V.
This 180 Degree MG90S Mini Digital Servo Motor can provide you fine control over your projects.
SPECIFICATIONS:
- Operating Voltage: 4.8-6.6 V.
- Model MG90S
- Weight: 13 gm
- Operating voltage 4.8V~6.6V
- Servo Plug JR
- Stall torque at 4.8V: 1.8 kg-cm
- Stall torque at 6.6V: 2.2 kg-cm
- Provides 180-degree rotation
- Compact design suitable for tight spaces
- Water- and dust-resistant plastic case for durability
- Compatible with Futaba connectors
- Swift and precise movements for enhanced control

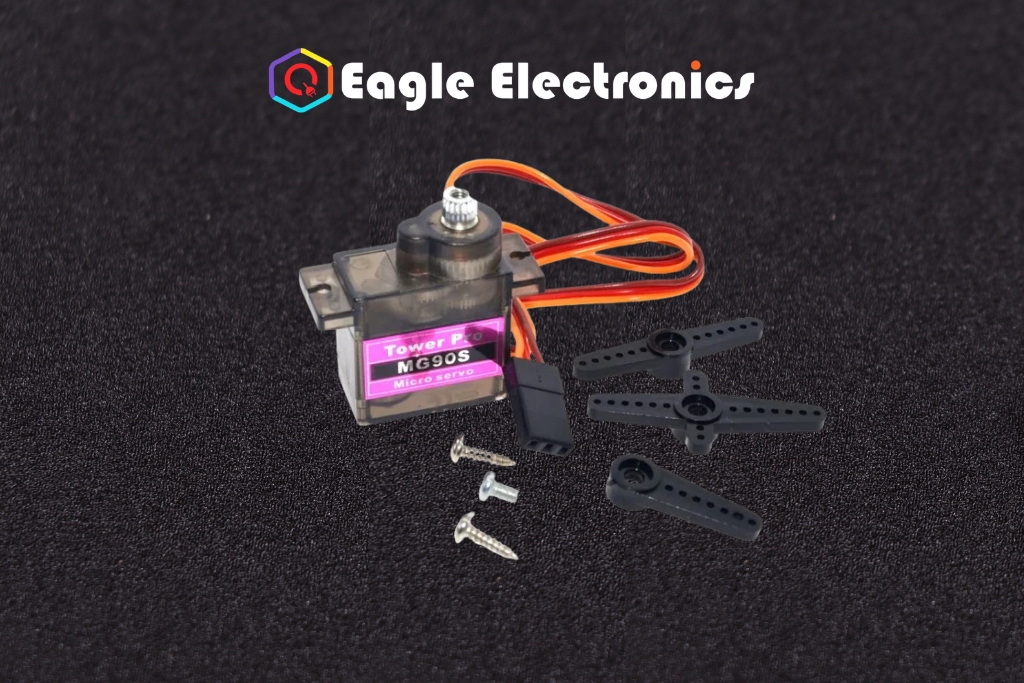

- Includes 3-pin power, control cable, and mounting hardware for easy installation
- Weight: 13 gm

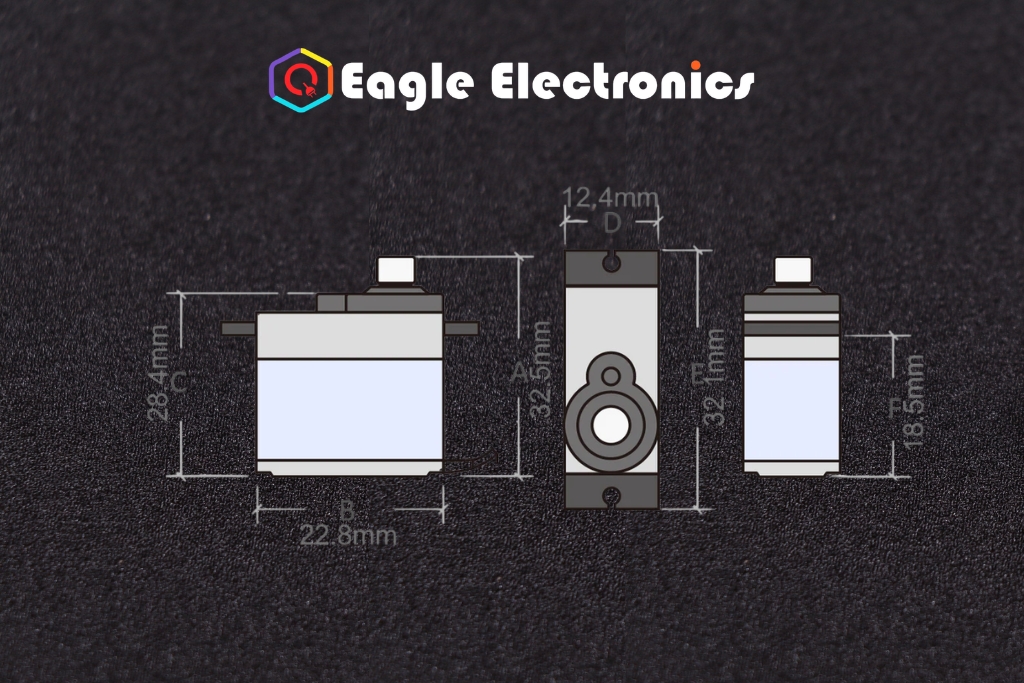

- Dimensions: 22.8×12.4×32.5 mm
