Magnetic Reed Switch

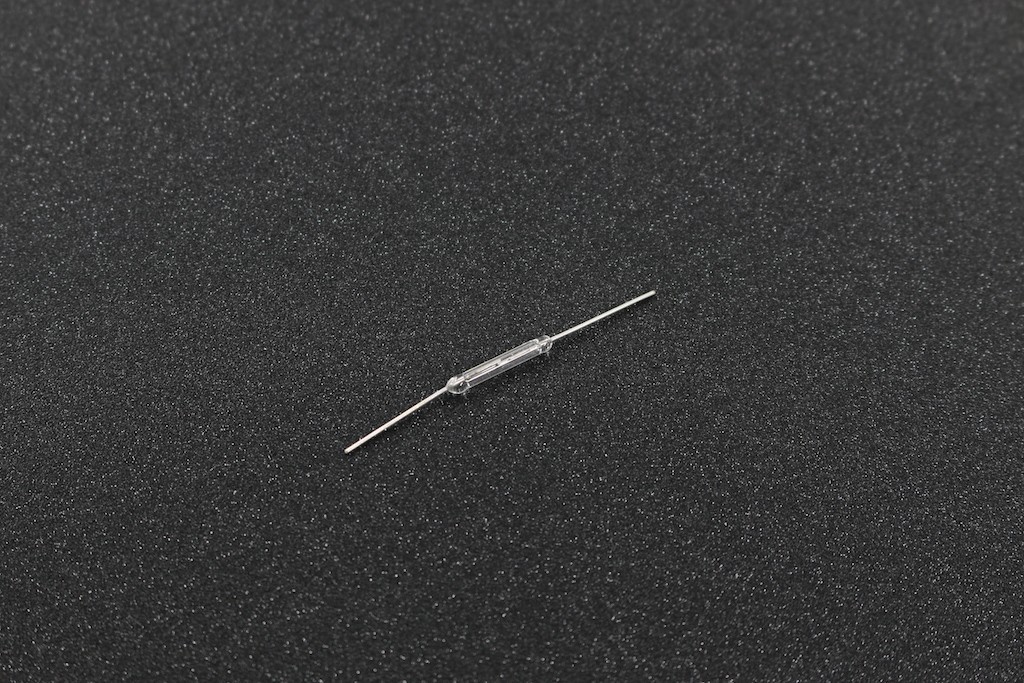

This is a small device called a reed switch. When the device is exposed to a magnetic field, the two ferrous materials inside the switch pull together and the switch closes. When the magnetic field is removed, the reeds separate and the switch open. This makes for a great non-contact switch. This switch can carry up to 0.5A.

Specifications

• Switching Voltage: 300 VDC
• Breakdown Voltage: 150 VDC Max.
• Contact Rating: 10W Max.
• Switching Current: 0.5A Max.
• Operate time: 0.45 ms Bounce time: 0.25 ms Max.
• Release time: 0.35 ms
• Resonant Frequency: 5000 HZ Max.
• Operating Frequency: 400 HZ
• Pull in Value: 20-70 AT Min.
• Drop out Value:4 AT Max.
• Contact Capacitance:0.5 pF
• Glass Length: 12mm
• Glass Diameter: 2mm
• Total Length: 54.5mm
• Weight: 0.3g.
