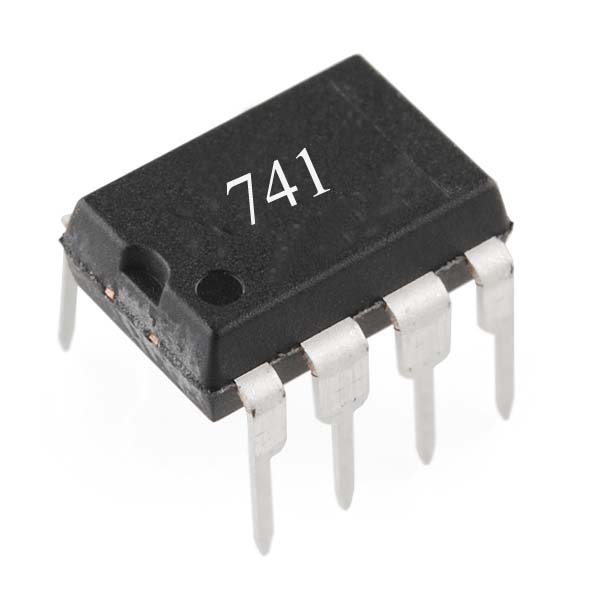

LM741 Operational Amplifier-EE414-P6

The LM741 series are general-purpose operational amplifiers which feature improved performance over industry standards like the LM709. They are direct, plug-in replacements for the 709C, LM201, MC1439, and 748 in most applications.

The amplifiers offer many features which make their application nearly foolproof: overload protection on the input and output, no latch-up when the common-mode range is exceeded, as well as freedom from oscillations.

The LM741C is identical to the LM741 and LM741A except that the LM741C has their performance ensured over a 0°C to +70°C temperature range, instead of −55°C to +125°C.

Features

• Overload Protection on the Input and Output
• No Latch-Up When the Common-Mode Range is Exceeded
• Large input voltage range
• High gain
• Short-circuit protection
• No frequency compensation required

Applications

• Comparators
• Multivibrators
• DC Amplifiers
• Summing Amplifiers
• Integrator or Differentiators
• Active Filters

Documents

LM741 Datasheet
