LED – Basic Red 5mm-EE2104-I10R1

LEDs – A must have for power indication, pin status, opto-electronic sensors, and fun blinky displays.

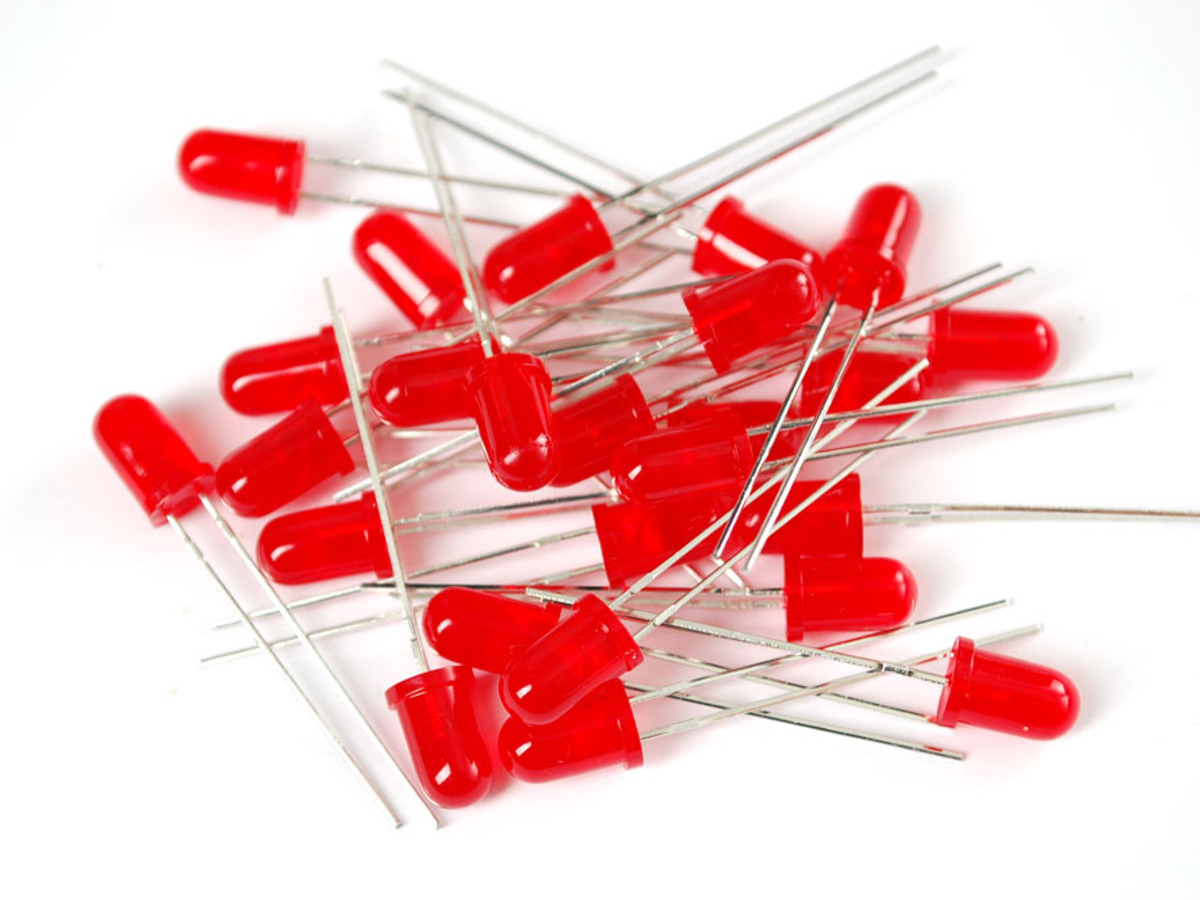

This is a very basic 5mm LED with a red lens. It has a typical forward voltage of 2.0V and a rated forward current of 20mA.

Features:

• 8-2.2VDC forward drop
• Max current: 20mA
• Suggested using current: 16-18mA
• Luminous Intensity: 150-200mcd

Documents

• Datasheet
• LED Resistor Calculator
