LED – Basic Green 3mm-EE2102-I11R2

LEDs – A must have for power indication, pin status, opto-electronic sensors, and fun blinky displays.

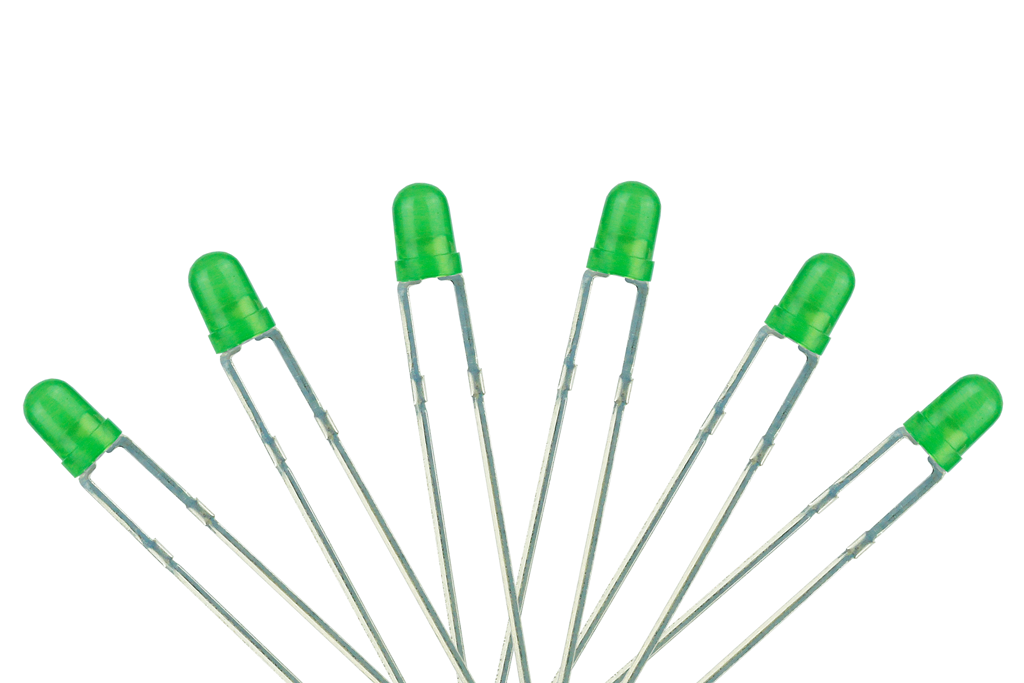

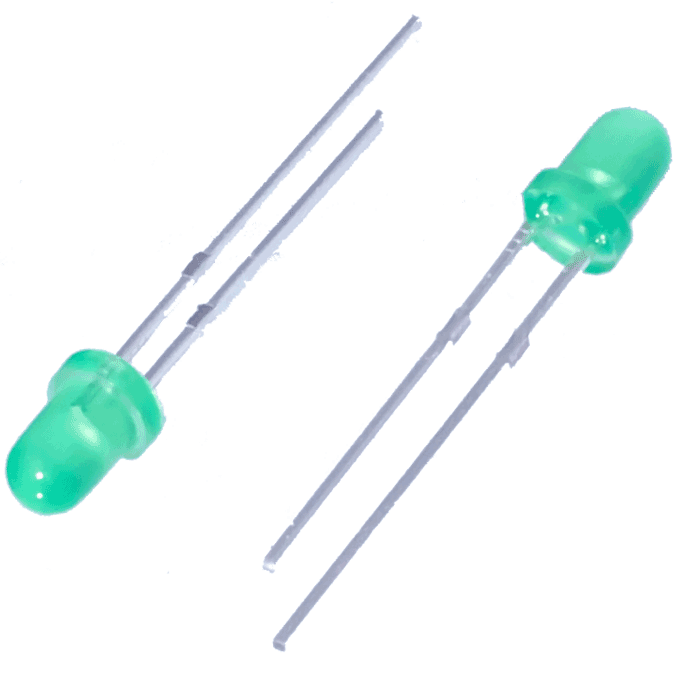

This is a very standard green LED. The lens is 3mm in diameter, and is diffused.

Features:

• 0-2.4 VDC forward drop
• Max current: 20mA
• Suggested using current: 16-18mA
• Luminous Intensity: 40-100mcd

Documents

• Datasheet
• LED Resistor Calculator
