Product details

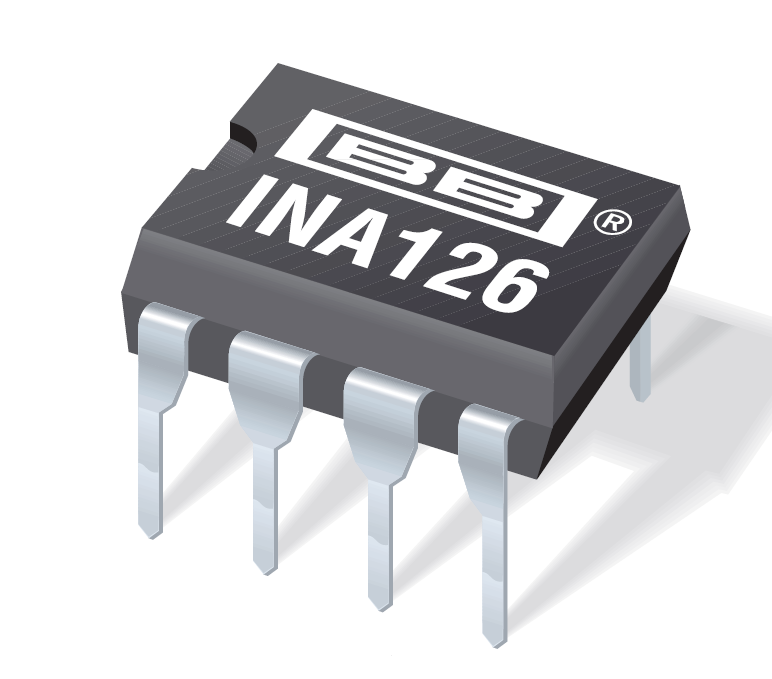

The INA126 is a precision instrumentation amplifier for accurate, low noise differential signal acquisition. Their two-op-amp design provides excellent performance with very low quiescent current (175µ A/channel). This, combined with a wide operating voltage range of ± 1.35V to ± 18V, makes them ideal for portable instrumentation and data acquisition systems.
Features
- LOW QUIESCENT CURRENT: 175µ A/chan.
- WIDE SUPPLY RANGE: ± 1.35V to ± 18V
- LOW OFFSET VOLTAGE: 250µ V max
- LOW OFFSET DRIFT: 3µ V/° C max
- LOW NOISE: 35nV/√ Hz
- LOW INPUT BIAS CURRENT: 25nA max
Applications
- INDUSTRIAL SENSOR AMPLIFIER: Bridge, RTD, Thermocouple,Loadcell
- PHYSIOLOGICAL AMPLIFIER: ECG, EEG, EMG
- MULTI-CHANNEL DATA ACQUISITION
- PORTABLE, BATTERY OPERATED SYSTEMS
Documents
INA126P Datasheet
