Product details

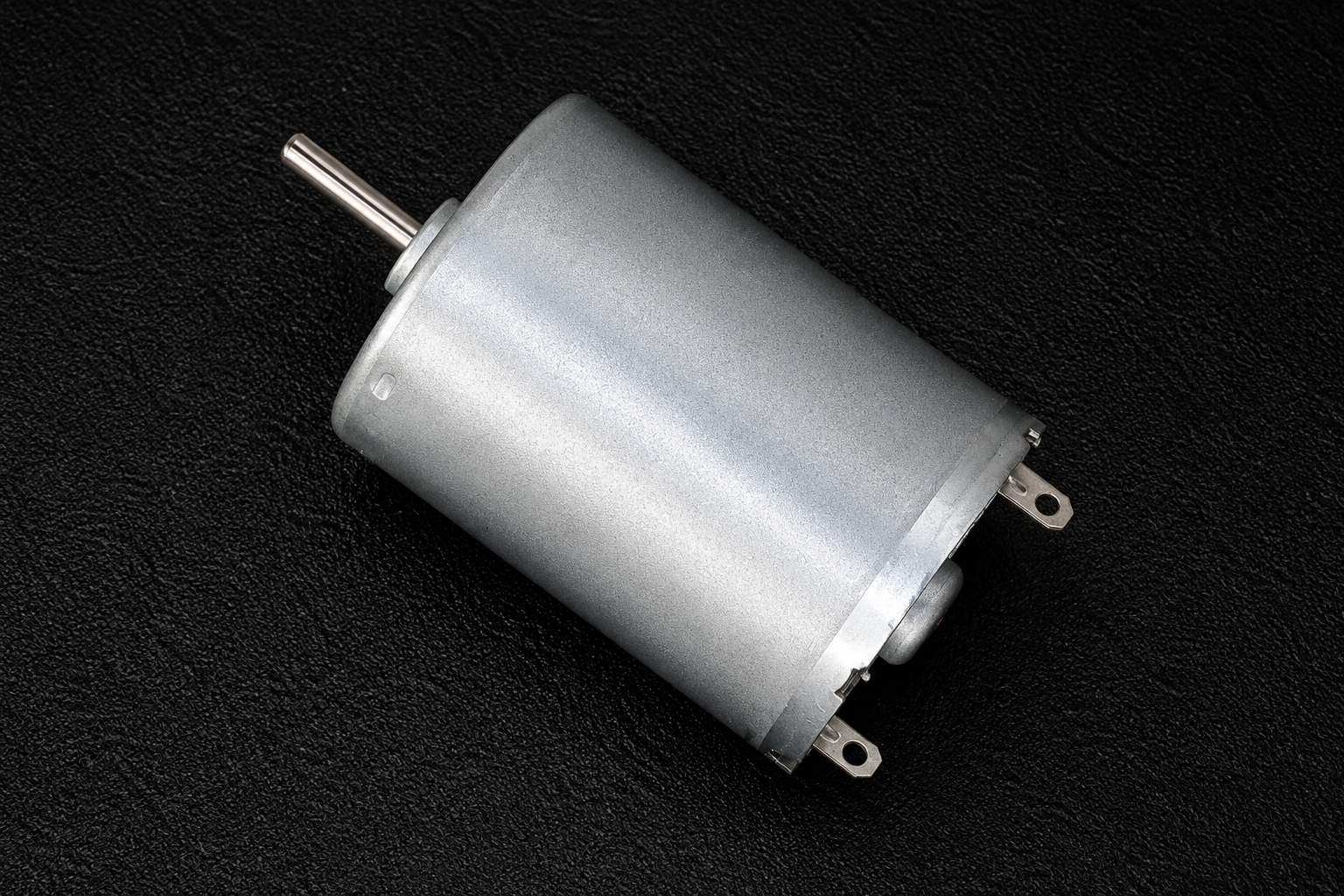

The RF-370 High Torque DC Motor is a compact and reliable brushed motor designed for robotics, DIY electronics, automation projects, miniature pumps, toy vehicles, and educational applications. Despite its small size, the RF-370 motor delivers excellent torque and smooth operation, making it suitable for applications requiring continuous rotation and dependable performance. Its durable metal construction ensures long service life and efficient operation in both hobby and professional projects.
Specifications
- Model: RF-370 DC Motor
- Motor Type: Brushed DC Motor
- Operating Voltage: 3V – 12V DC
- Rated Voltage: 6V DC
- No-Load Speed: 3,000 – 12,000 RPM (depending on voltage)
- Shaft Diameter: 2.0 mm
- Shaft Length: Approx. 10 mm
- Motor Body Diameter: Approx. 24 mm
- Motor Length: Approx. 31 mm
- Rotation Direction: CW / CCW (Reversible by changing polarity)
- Housing Material: Metal
- Terminal Type: Solder Tabs
- Current Consumption: Low Power Design
- Weight: Approx. 45 g
