FlySky FS-i6 2.4G 6CH PPM RC Transmitter With FS-iA6B Receiver

When operating a drone, a transmitter is one of the most crucial parts. You cannot operate a multirotor without it, as it uses radio signals to transmit commands wirelessly to a radio receiver, which is linked to an aircraft or multirotor being controlled remotely.

This is the FlySky FS-i6 2.4G 6-channel PPM RC transmitter with the FS-iA6B receiver. It is an excellent beginner radio for individuals who are new to the subject of drone flying.

Most importantly, you receive a sleek, contemporary radio transmitter that comfortably fits in your hands and has a weight of approximately 400 g. It won’t challenge your arm endurance on those lengthy flights. This radio is also very convenient with a 3-position switch. It features two adjustable knobs for flight modes and different flap configurations.

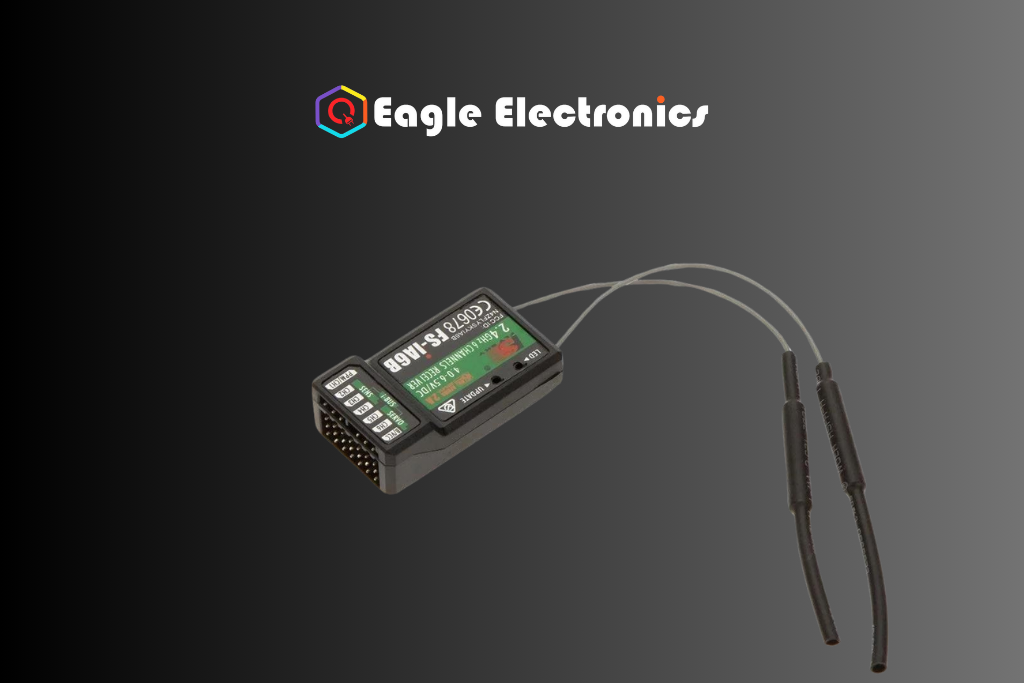

You will receive the new FS-iA6B receiver with this kit. This is a small 6-channel receiver that can reach distances of over 500m. It includes a double antenna for great reception and the ability to resist interference.

Every transmitter has a distinct identification (ID), so when they are paired, the receiver stores this ID and only accepts data from that specific transmitter. This prevents the reception of other transmitter signals and significantly reduces interference, hence enhancing safety.

Specifications

• RF Range (GHz): 2.40 ~ 2.48
• Bandwidth (KHz): 500
• RF Power (dBm): ≤20
• RF Receiver Sensitivity: -105dbm.
• of channels: 6.
• RF Receiver Sensitivity: -105dbm.
• Antenna Length: 26mm * 2 (dual antenna)
• Sensitivity: 1024
• Low Voltage Warning (V): ≤ 4.2
• Power: 6V (4 x 1.5AA Not Included)
• Display mode: Transflective STN positive type, 128*64 dot-matrix VA73*39mm, white backlight
• Dimensions(LXWXH MM) :174x190x40mm
• Remote controller weight (gm): 400.

Flysky FS-i6 Specifications and Features

• Entry-level 6 channel 2.4GHz radio with telemetry capability.
• Dual Rate/Trims/Gear/Flap/Gyro Gain Adjust/Flight Mode/Throttle Hold/Hover Pitch Switches.
• Easy to use Programming & Navigation Buttons.
• Supports Heli/Standard Wing/Elevon/V-Tail.
• 20 Model Memory.
• 8 Character Model Name.
• Trainer and charging ports.
• The backlight LCD screen displays real-time transmitter and receiver voltage.
• 4 Stick Mode Selectable.
• Mode 2.
• It comes with a receiver.

Flysky fs-i6 Transmitter Specifications:

• Model Type: Glider/Heli/Airplane
• Band: 142
• 4ghz System: AFHDS 2A and AFHDS
• Code Type: GFSK
• DSC Port: PS2;
• Output: PPM
• Charger Port: No
• ANT length: 26mm*2(dual antenna)
• Online update: Yes
• Certificate: CE0678,FCC
• Model Memories: 20
• Channel Order: Aileron-CH1, Elevator-CH2, Throttle-CH3, Rudder-CH4, Ch 5 & 6 open to assignment to other functions.

FS-iA6B Receiver Specifications:

• Channel: 6.
• Frequency Range: 2.4055–2.475 GHz.
• Band Width Number: 140
• Transmitting Power: ≤ 20 dBm.
• RF Receiver Sensitivity: 105 dBm.
• 4G Mode: The second generation of an enhanced version of the automatic FM digital system.
• Encoding: GFSK.
• Antenna Length : 2 x 26 mm (dual antenna).
• Input Power : 4.0 – 8.4 VDC (2A).
• Dimension : 47 x 26.2 x 15 mm
• Weight: 14.9 gm.
• Data Acquisition Interface: Yes.
• Model Type : Airplane / Glider / Helicopter.
• Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i10, FS-GT2E, FS-GT2G.

Package Includes

• 1 x FlySky FS-i6 2.4G 6CH PPM RC Transmitter.
• 1 x FS-iA6B receiver.
• 1x User Manual Booklet.
