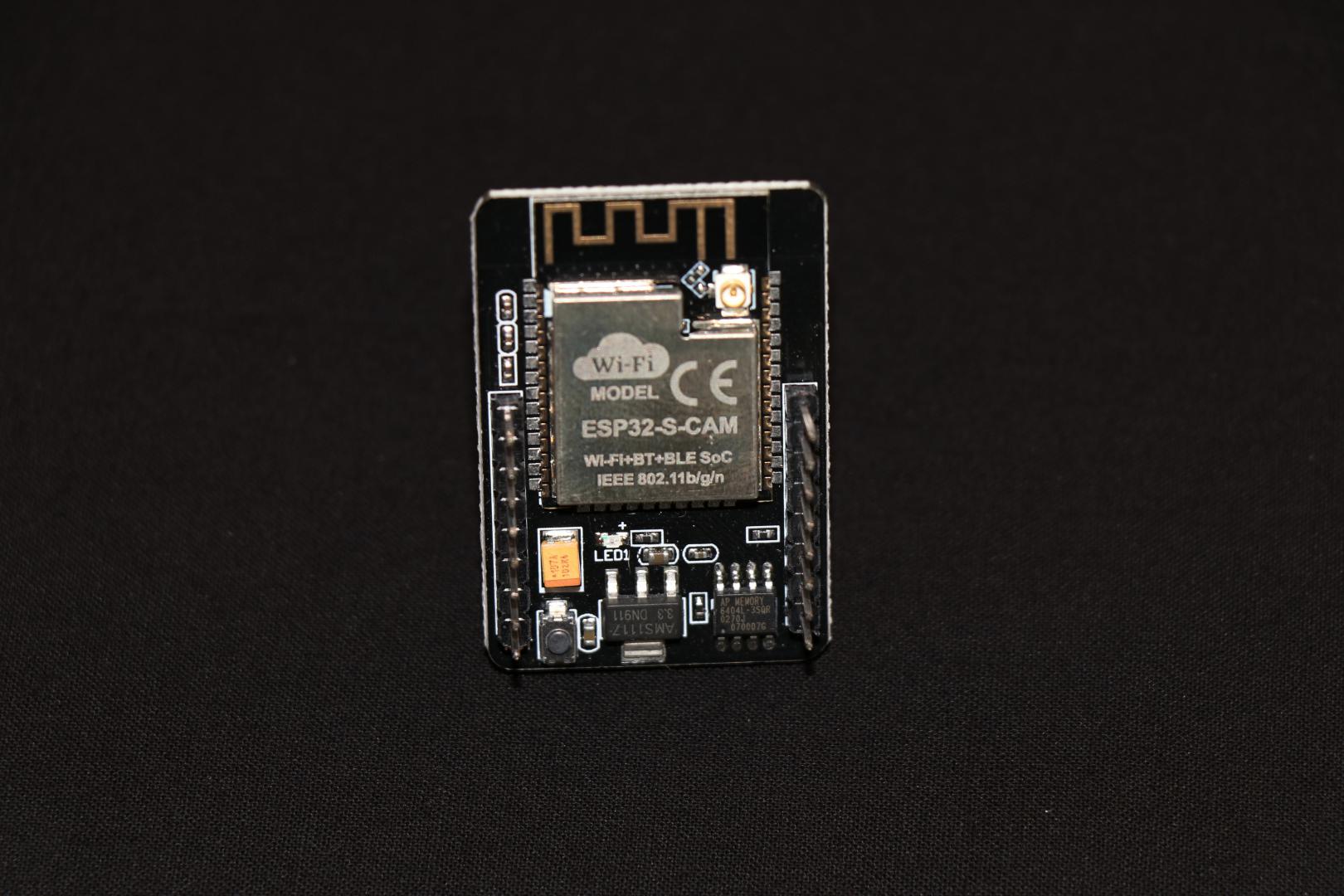

ESP32 CAM WiFi Module Bluetooth with OV2640 Camera Module

The ESP32 CAM WiFi Module Bluetooth with OV2640 Camera Module 2MP For Face Recognization has a highly competitive small-size camera module that can operate independently as a minimum system with a footprint of only 40 x 27 mm; a deep sleep current of up to 6mA; and is widely used in various IoT applications. It is appropriate for smart devices in the home, industrial wireless control, wireless monitoring, and other IoT applications. This module uses a DIP package and can be directly inserted into the backplane to enable rapid product production while providing customers with a high-reliability connection mode that is suitable for use in a variety of IoT hardware terminals. With two high-performance 32-bit LX6 CPUs and a seven-stage pipeline architecture, ESP integrates WiFi, traditional Bluetooth, and BLE Beacon. It has an adjustable frequency range of 80MHz to 240MHz, an on-chip sensor, a Hall sensor, a temperature sensor, and other features.

Specifications

·       Onboard ESP32-S module, supports WiFi + Bluetooth

·       2 MP-OV2640 camera with flash

·       Onboard TF card slot, supports up to 4G TF card for data storage

·       Supports WiFi video monitoring and WiFi image upload

·       Supports multi sleep modes, deep sleep current as low as 6mA

·       Control interface is accessible via pinheader, easy to be integrated and embedded into user products

·       Processor: ESP32-D0WD

·       Built-in Flash: 32Mbit

·       RAM: Internal 512KB + External 4M PSRAM

·       Antenna: Onboard PCB antenna

·       WiFi protocol: IEEE 802.11 b/g/n/e/i

·       Bluetooth: Bluetooth 4.2 BR/EDR and BLE

·       WIFI mode: Station / SoftAP / SoftAP+Station

·       Security: WPA/WPA2/WPA2-Enterprise/WPS

·       Output image format: JPEG (OV2640 support only), BMP, GRAYSCALE

·       Supported TF card: up to 4G

·       Peripheral interface: UART/SPI/I2C/PWM

·       IO port: 9

·       UART baudrate rate: default 115200bps

·       Power supply: 5V

·       Transmitting power:

Ø 11b: 17 ±2dBm(@11Mbps)

Ø 11g: 14 ±2dBm(@54Mbps)

Ø 11n: 13 ±2dBm(@HT20,MCS7)

·       Receiving sensitivity:

Ø   CCK,1Mbps: -90 dBm

Ø CCK,11Mbps: -85 dBm

Ø 6Mbps(1/2 BPSK): -88 dBm

Ø 54Mbps(3/4 64-QAM): -70 dBm

Ø HT20,MCS7(65Mbps, 72.2Mbps): -67 dBm

·       Power consumption:

Ø Flash off: 180mA@5V

Ø Flash on and brightness max: 310mA@5V

Ø Deep-Sleep: as low as 6mA@5V

Ø Modern-Sleep: as low as 20mA@5V

Ø Light-Sleep: as low as 6.7mA@5V

·       Operating temperature: -20 ℃ ~ 85 ℃

·       Storage environment: -40 ℃ ~ 90 ℃, <90%RH

·       Dimensions: 40.5mm x 27mm x 11mm

·       Weight: 9g.

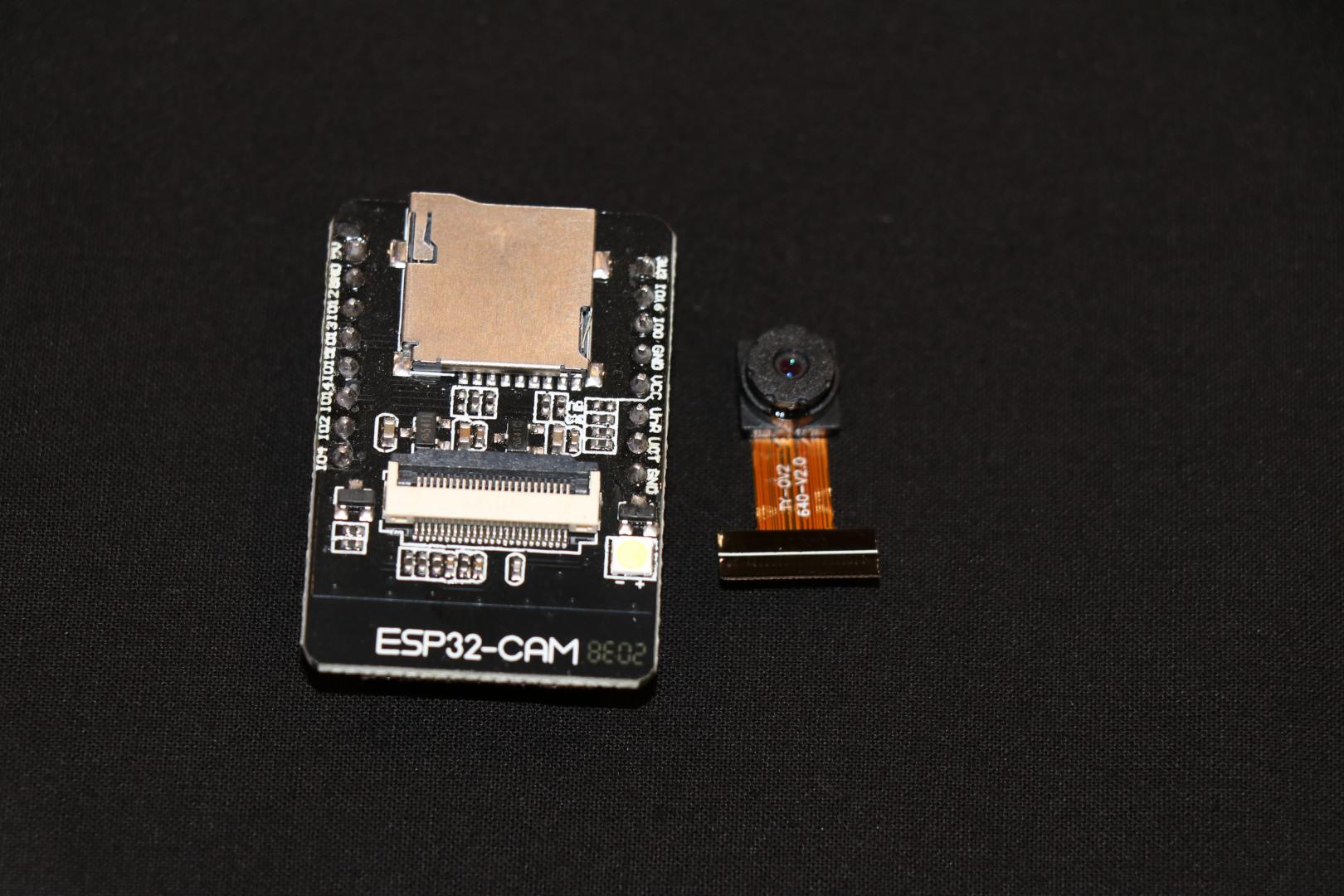

Package Includes

1 x ESP32-CAM Development Board

1 x Camera Module OV2640 .
