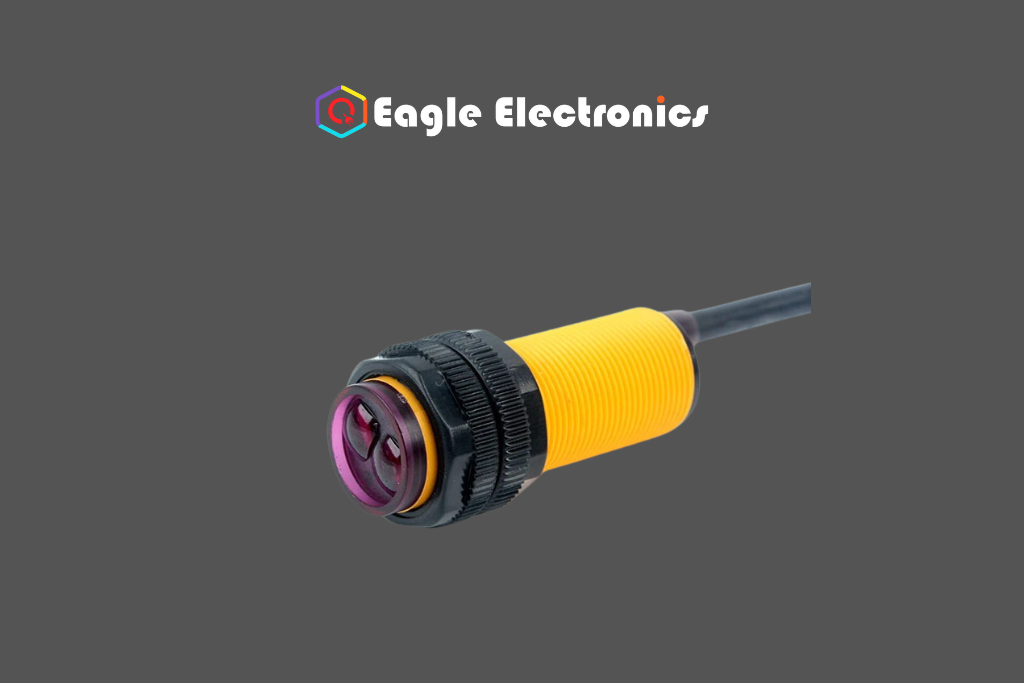

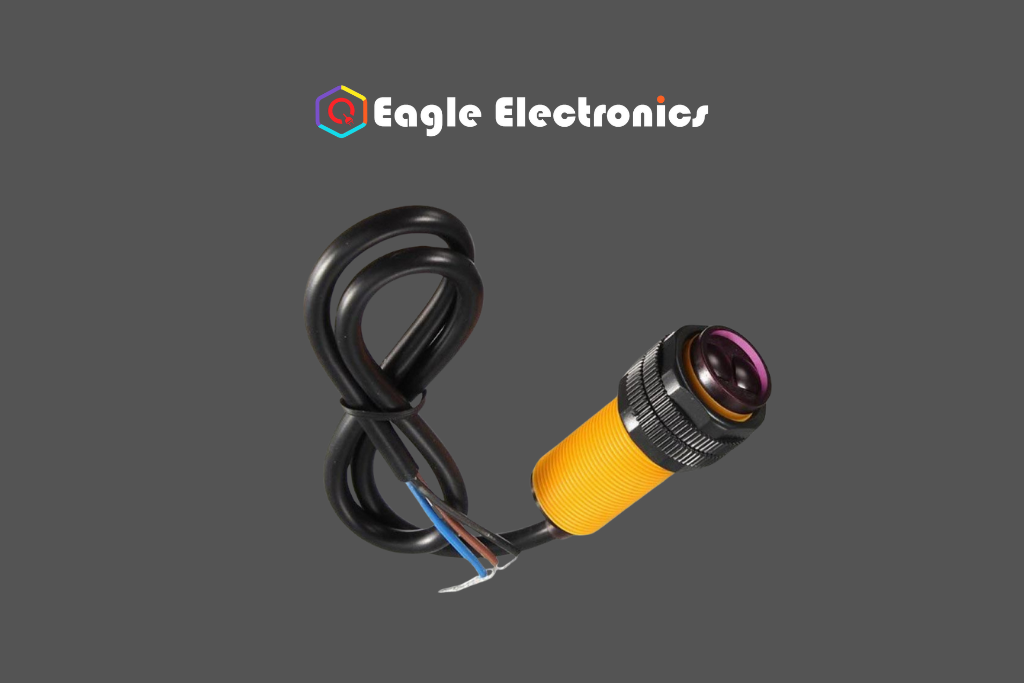

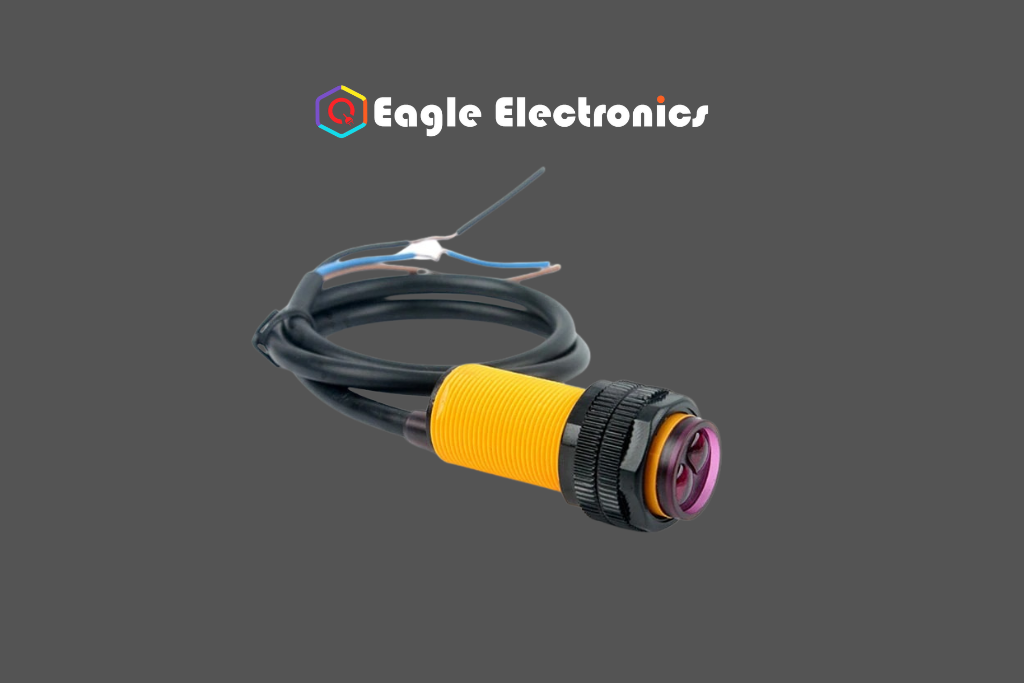

E18-D80NK Adjustable Infrared Sensor Switch 3-80cm

The E18-D80NK Adjustable Infrared Sensor Switch 3-80cm is a combination of a transmitter and receiver in a photoelectric switch sensor. The detection range can be modified based on the requirements. The sensor can detect objects within a range of 3 to 80 centimetres.
The Adjustable Infrared Sensor Switch is compact, user-friendly, affordable, simple to construct, and may be widely used in a robot to detect and avoid obstructions, interactive media, industrial assembly lines, and several other scenarios.
The signal output changes depending on the obstructions. It stays high when there are no impediments and stays down when there are obstacles. There is a strong light positioned behind the probe to measure the range of 3cm to 80cm.

Specifications

• Work voltage: 5V
• Working Distance: 3Cm ~ 80Cm
• Product name: M18 diffuse emission photoelectric switch
• Output type: Output mode, DC three-wire.
• Adjustable detection distance: 80cm.
• Load current: 300ma
• Shell material: ABS Plastic
• Work temperature: -25+75°C
• Dimensions: 18*58mm
• Type: NPN NO
• Weight:4g.

Connection

Red wire: +5V
Green wire: GND
Yellow wire: Digital output

OR

Brown wire: +5V
Blue wire: GND
Black wire: Digital output.
