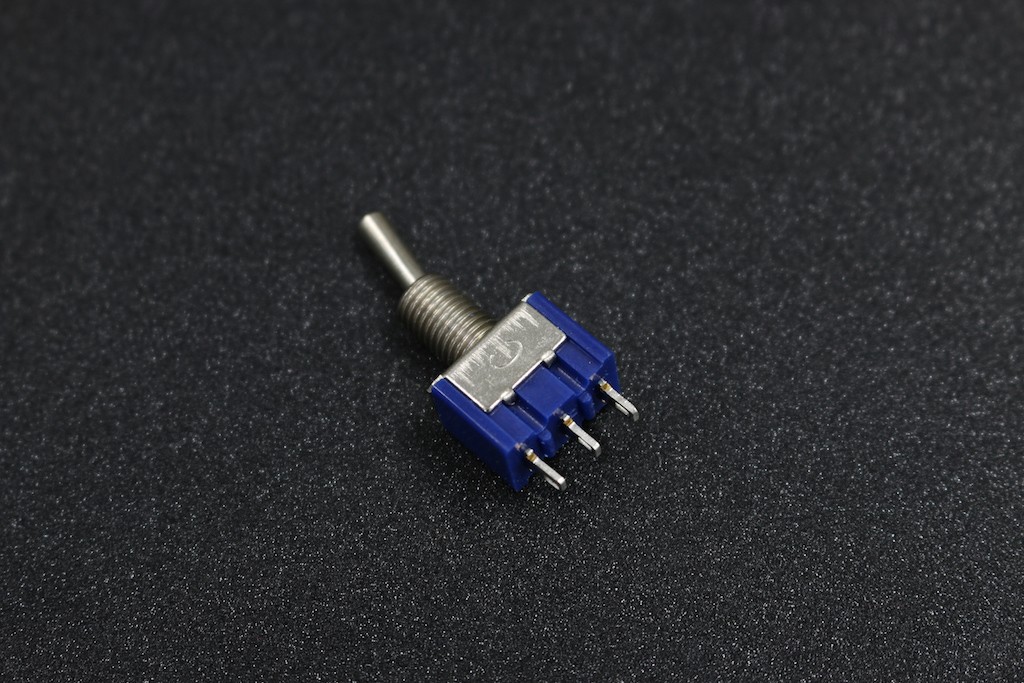

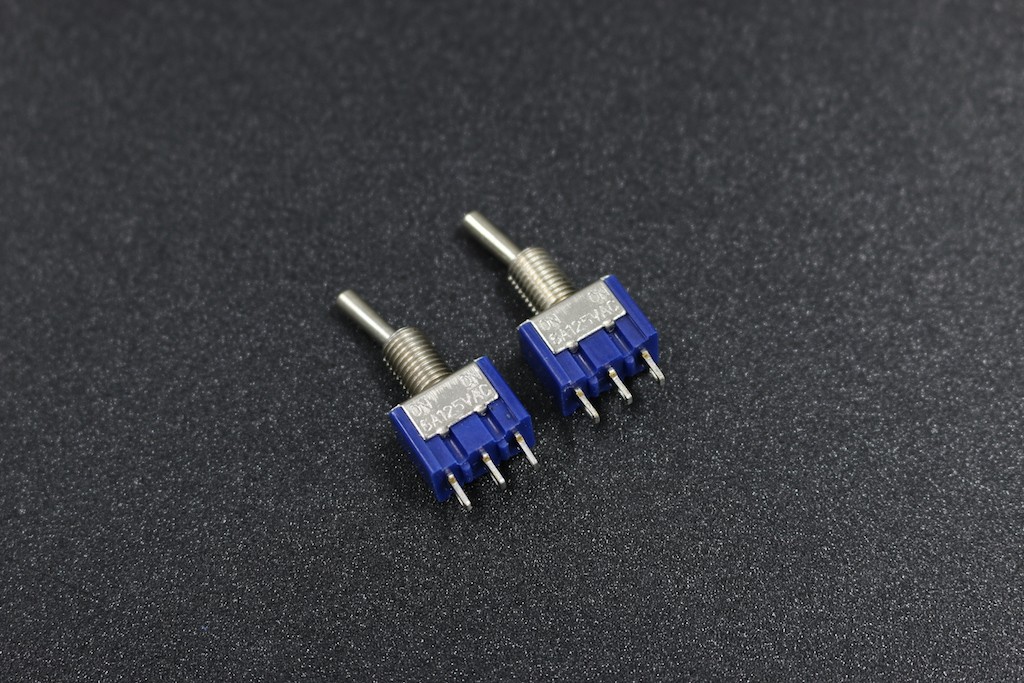

DPDT Toggle Switch -EE1806-P5

Double Pole Double Throw mini toggle switches control four circuits, allowing only two circuits to be energized at the same time. The centre position one circuit on both sides of the switch are connected. Great for use in effects pedals or amplifiers for low voltage switching.

Specifications

• DPDT 3A 250VAC/6A 125V
• Pin number:6-Pin
• Switch Operation: On-Off-On
• Mounting hole:1/4″(6mm)
• shaft length:7.9mm
• Size:12 x 13 mm
• Operating Temperature: -30°C to 130°C
• Weight: 3g.
