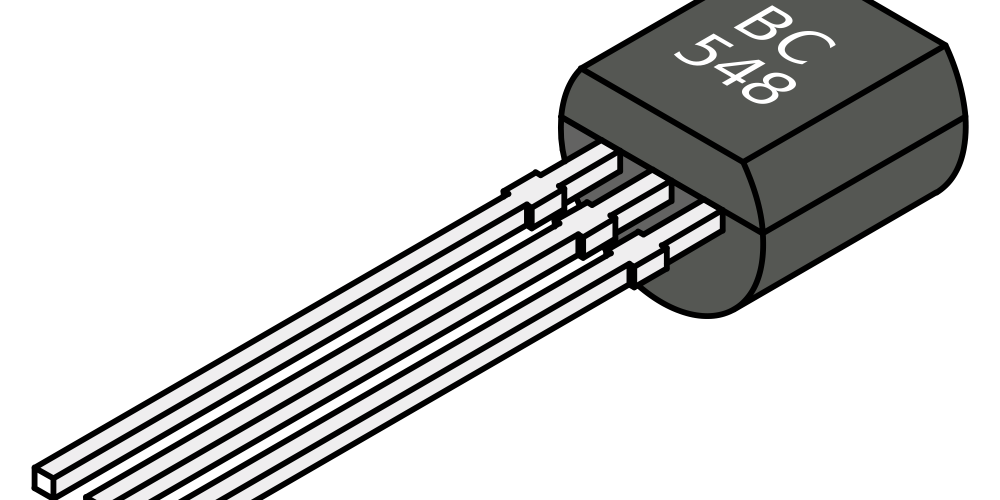

BC548 NPN General Purpose Transistor

BC548 is general purpose silicon, NPN, bipolar junction transistor. It is used for amplification and switching purposes. The current gain may vary between 110 and 800. BC548 is used in common emitter configuration for amplifiers.

Specifications

• Collector-Emitter Volt (Vceo): 30V
• Collector Current (Ic): 0.1A
• hfe: 110-800 @ 2mA
• Power Dissipation (Ptot): 500mW
• Current-Gain-Bandwidth (ftotal): 300MHz
• Type: NPN.
