Product details

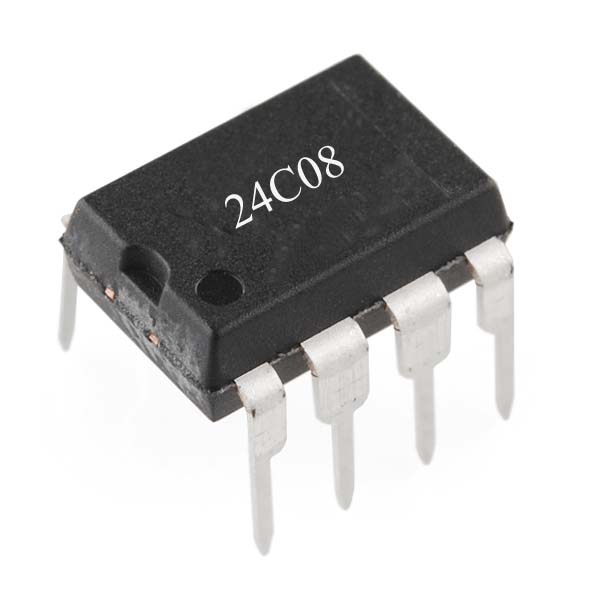

TheAT24C08Aprovides 8192 bits of serial electrically erasable and programmable read -only memory (EEPROM) organized as1024 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low -power and low-voltage operation are essential.

Features

Voltage Operation: VCC = 2.7V to 5.5V
Internally Organized 128 x 8 (1K), 256 x 8 (2K), 512 x 8 (4K), 1024 x 8 (8K) or 2048 x 8 (16K)
Two-wire Serial Interface
Schmitt Trigger, Filtered Inputs for Noise Suppression
Bidirectional Data Transfer Protocol
100 kHz (1.8V) and 400 kHz (2.7V, 5V) Compatibility
Write Protect Pin for Hardware Data Protection
8-byte Page (1K, 2K), 16-byte Page (4K, 8K, 16K) Write Modes
Partial Page Writes Allowed
Self-timed Write Cycle (5 ms max)
High-reliability
Endurance: 1 Million Write Cycles
Data Retention: 100 Years
