Product details

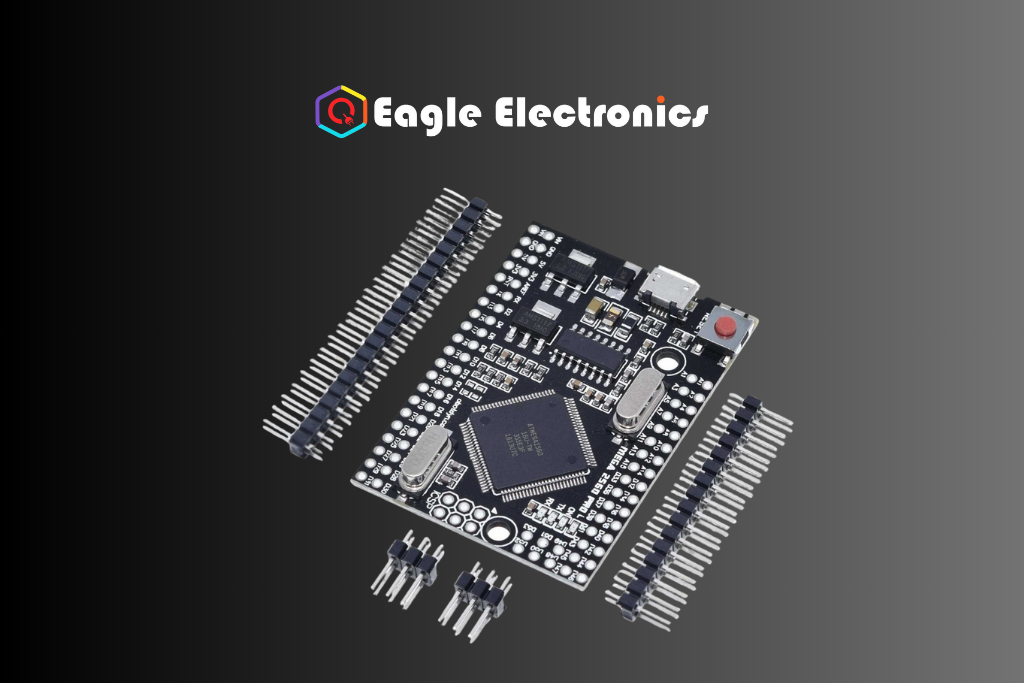

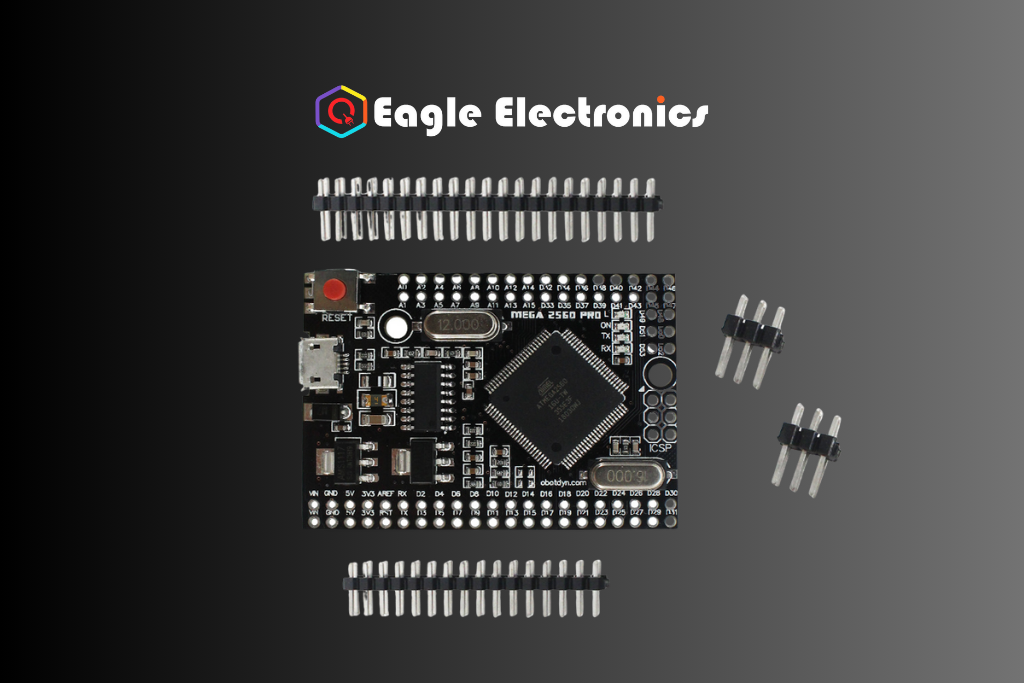

The Mega Pro Embed CH340G/AATmega2560 board utilises the ATmega2560 microprocessor as its foundation. Built on the Atmel ATmega2560 microcontroller and USB-UART interface chip CH340G. This is an excellent method to place your final project on the welding prototype board.
The Mega Pro Embed features are comparable to those of the Mega 2560. Even though it is an embedded board, it is as sturdy and stable as the Mega Board. The board utilises the authentic chip, and it contains high-quality quartz resonators operating at a frequency of 16 MHz. The board uses the chip CH340G as the UART-USB converter. It gives a reliable data interchange result when you work at a frequency of 12 MHz (the driver needs to be loaded on the computer).
You have the option to supply power to the board or to the pins via the MicroUSB connector. The voltage regulator (LDO) is capable of accepting input voltages ranging from 6V to 9V (with a peak of 18V) DC. The voltage regulator enables the use of up to 18V as an input value; however, we do not advocate exceeding the recommended values aforementioned, since this might lead to excessive heat and harm the device.
Specifications
- Microcontroller ATmega2560
- USB-TTL converter: CH340
- Input Voltage (recommended): 6-9V
- Operating Voltage:5v
- Input Voltage (limit):12V
- DC Current for 5V Pin: 800 mA
- DC Current for 3.3V Pin: 800 mA
- Logic Level: 5V
- USB: Micro USB
- Clock Frequency: 16MHz
- Digital I/O: 54
- Analog I/O: 16
- Memory Size: 256kb
- Data RAM Type/Size: 8Kb
- Data ROM Type/Size: 4Kb
- Interface Type: ISP
- Operating temperature −40С°/+85С°
- Board Dimension: 54x40x18mm
- Weight: 15g
