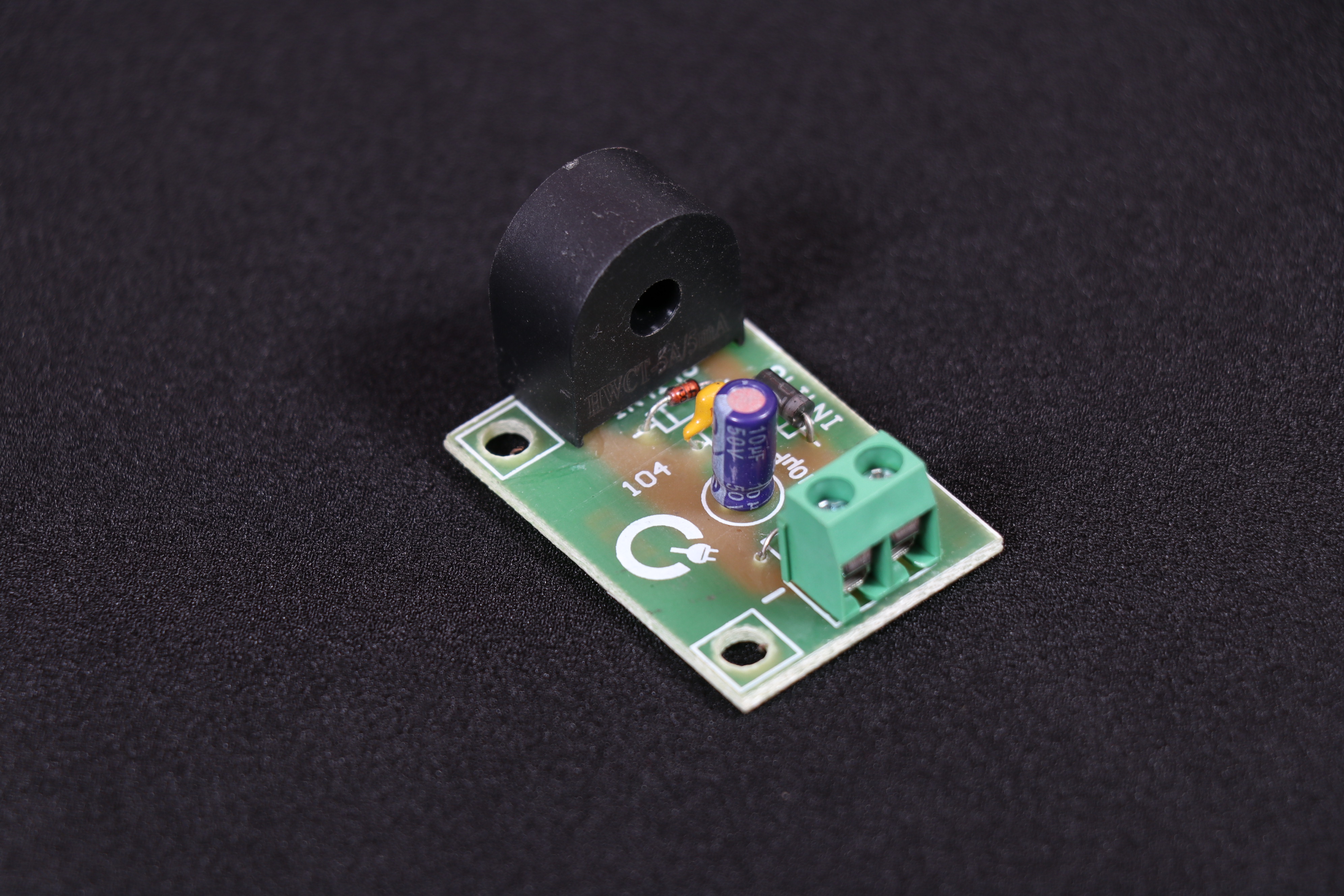

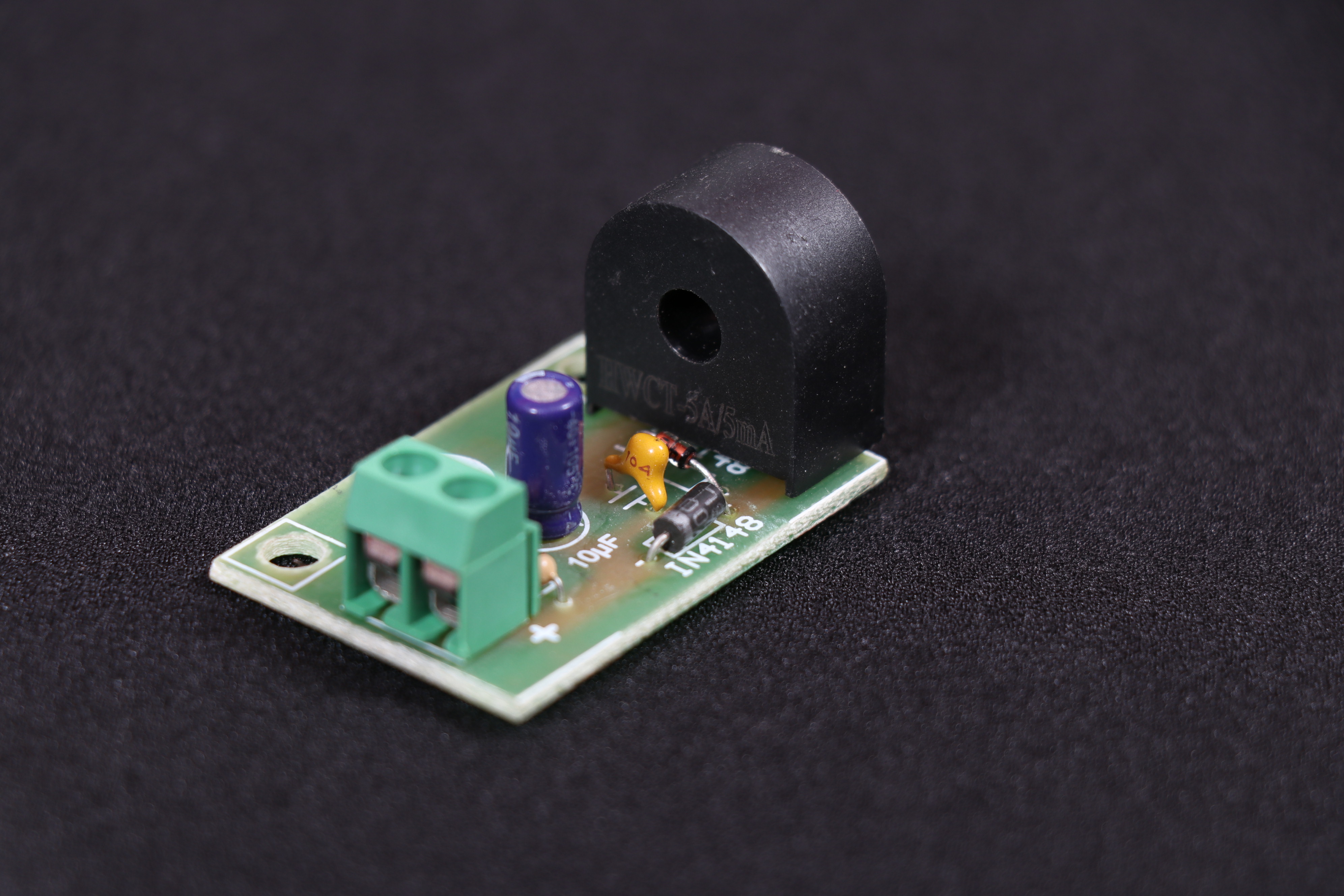

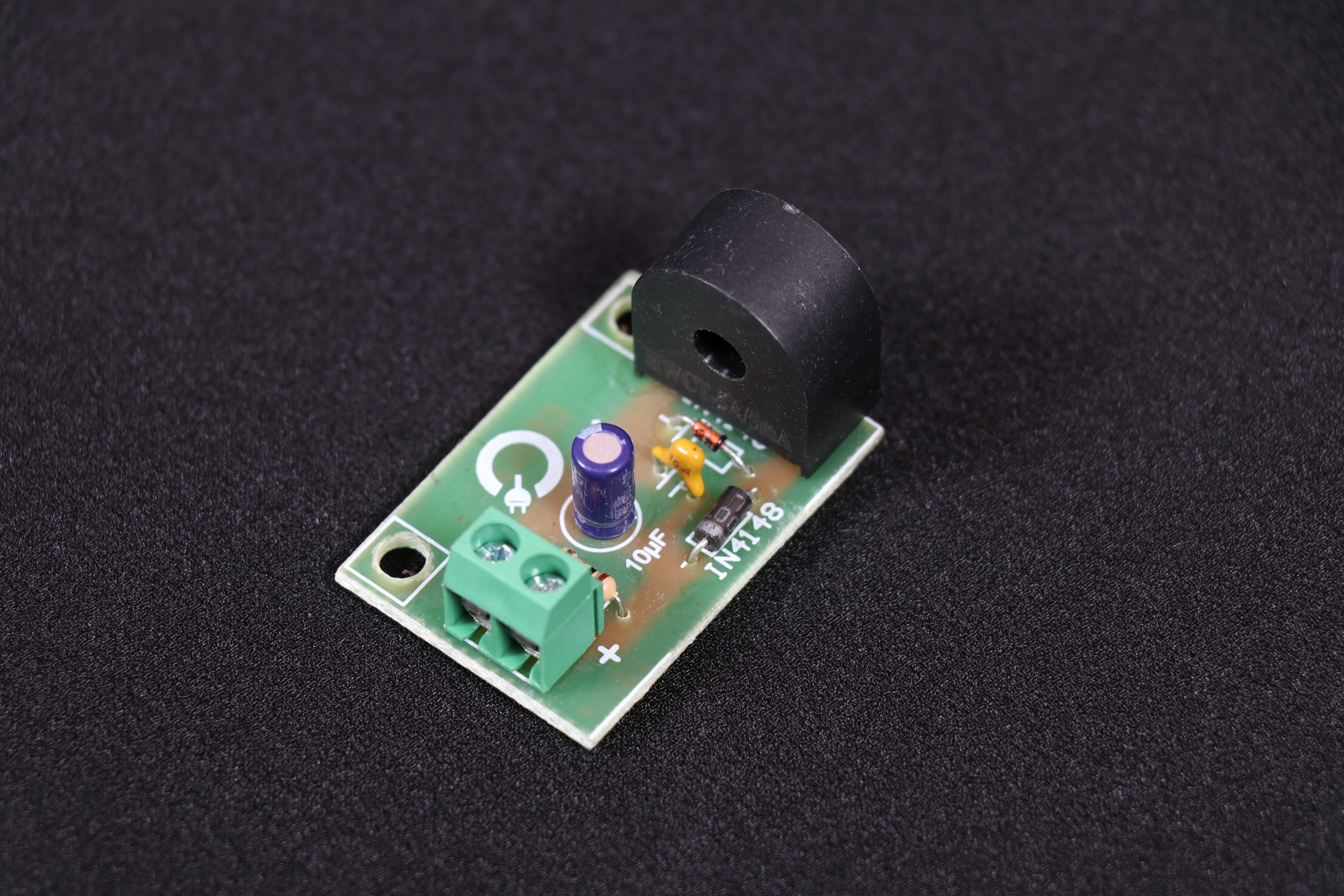

5A AC Current Sensor

Onboard precision micro current transformer, which can transform AC signals of large current into small amplitude signals. The maximum current that can be detected can reach 5A, and the present current signal can be read via analog I/O port.

Specifications

• Onboard precision micro current transformer
• Onboard sampling resistor
• The module can measure AC currents less than 5A,
• The corresponding analog output 5A/5mA
• PCB Dimensions (L x W x H in mm):28×1.5×38.5mm
• Weight: 10g.

Documents

Current Transformer Datasheet
