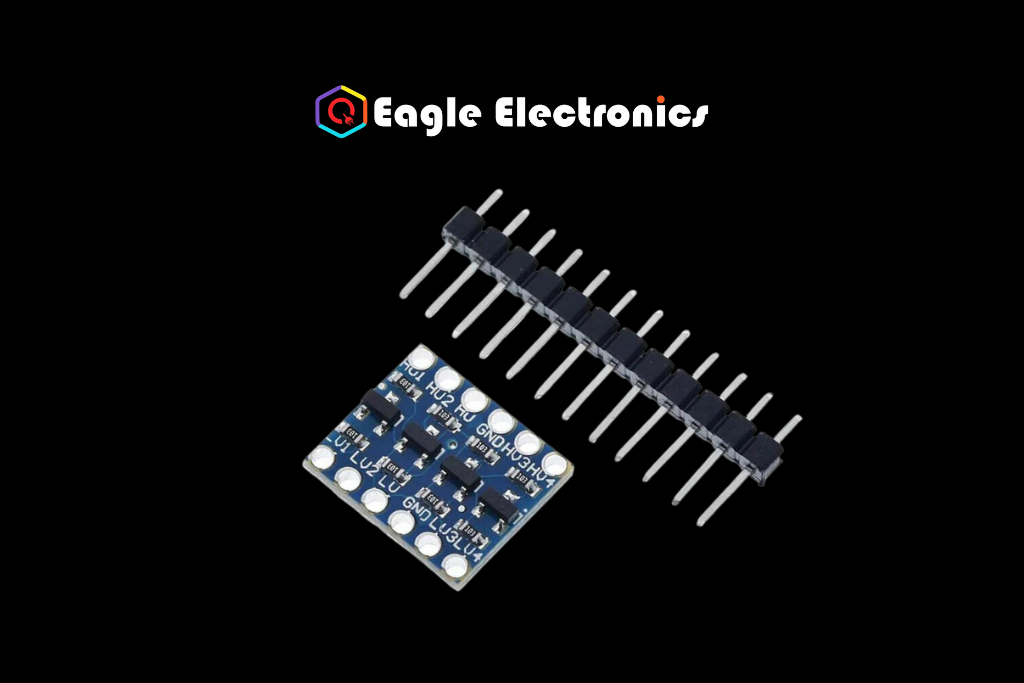

4 Channel I2C Logic Level Converter

This level converter has four high-speed, bi-directional channels, which makes it possible to safely connect devices with various logic levels.
The four channels of the logic level converter circuit are sufficient to accommodate the majority of popular bidirectional and unidirectional digital interfaces, including I2C, SPI, and asynchronous TTL serial. The logic level converter circuit can convert signals from as low as 1.8 V to as high as 5 V and vice versa.
You are aware of how difficult it can be if you have ever attempted to connect a 3.3 V device to a 5 V system. A little gadget known as a bi-directional level converter—4 channels—safely steps up and down 3.3V and 5V signals at the same time. 2.8V and 1.8V devices can also be used with this level converter. When compared to our earlier versions, this Logic level converter really stands out because it allows you to.

Specifications

• Number of Channels:4
• Voltage on Lx Side: 1.8V-5V
• Voltage on Hx Side: 2.8V-6V
• Power: 2.8V – 6V
• Mutual transform between 5V TTL and 3.3V TTL
• Four channels of logic and high voltage low voltage logic can two-way transform
• Portable and lightness, with 2 rows 6 pin contact pins
• Dimension: 16 x13 x 3 (L x W x H) mm
• Weight: 2g.

How to use

• High voltage (5V for example) to the ‘HV’ pin
• Low voltage (3.3V for example) to ‘LV’
• Gound from the system to the ‘GND’ pin.
