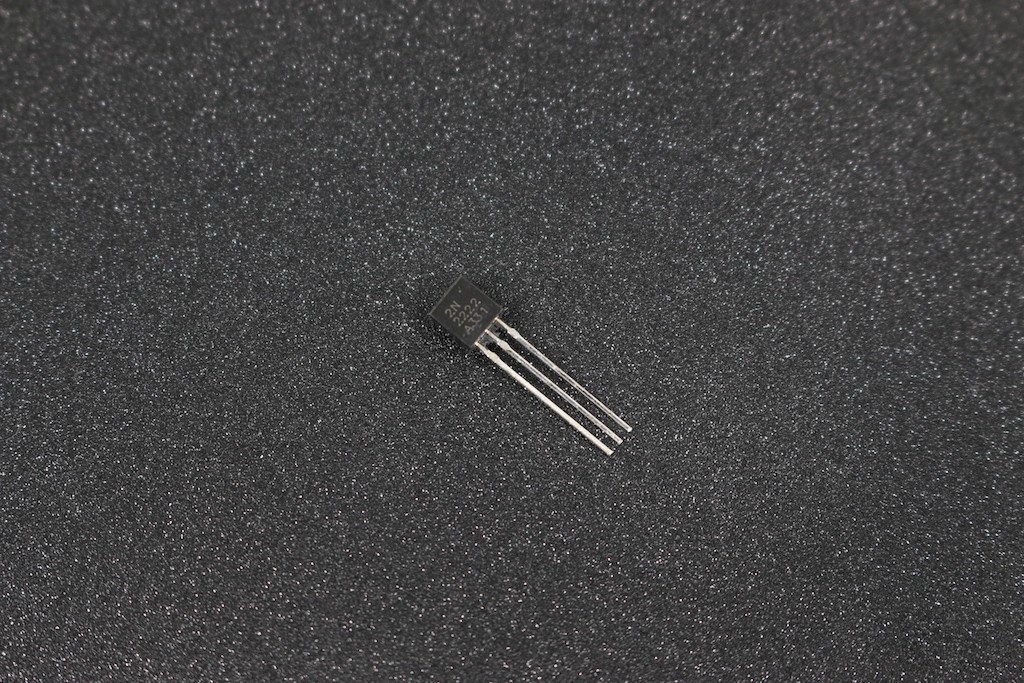

2N2222A NPN Transistor

A semiconductor device, the 2N2222A, is used to amplify or switch electronic signals and electrical power. It’s made of semiconductor material and has at least three terminals for connecting to a circuit outside of it. The current through another pair of terminals is controlled by a voltage or current applied to one pair of transistor terminals. A transistor can magnify a signal because the regulated (output) power can be higher than the controlling (input) power.

Specifications

• Transistor Polarity: NPN
• Collector-Base Voltage (VCBO): 75V
• Collector-Emitter Voltage (VCEO): 40V
• Emitter-Base Voltage (VEBO): 6V
• Continuous Collector Current (IC): 0.6A
• Collector-Base Capacitance (CCBO): 8pF
• Transition Frequency (fT): 300MHz
• DC Current Gain (hFE): 300
• Operating Temperature Range: -65 – 175°C
• Power Dissipation (PD): 1.8W
