1800KV BLDC MOTOR

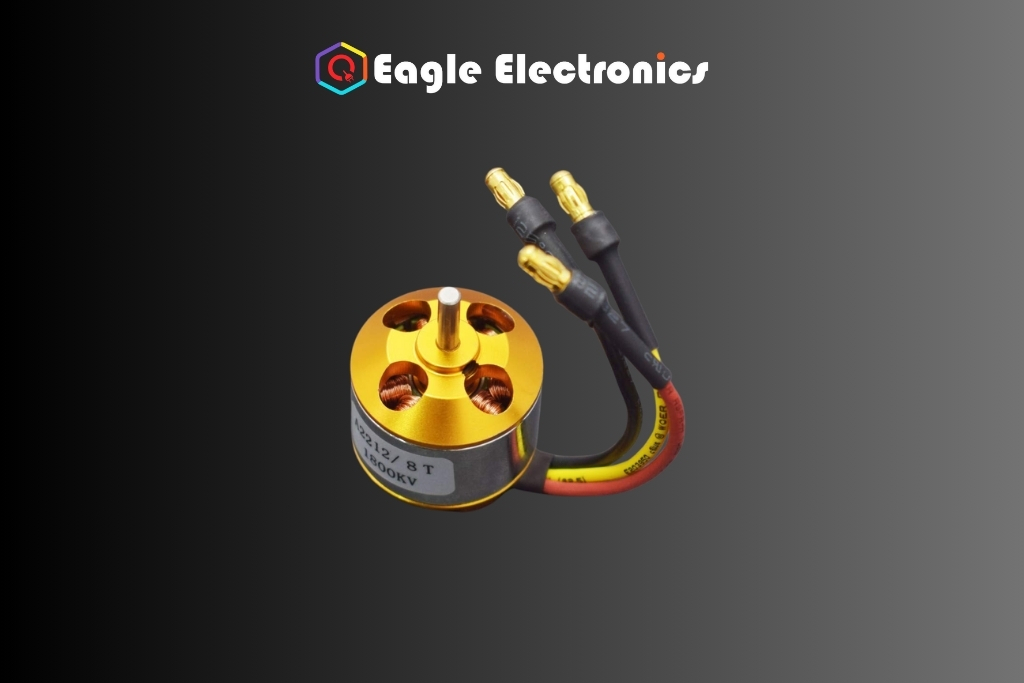

A2212 is a brushless outrunner dc motor designed to power quadcopters and multirotors. It is an 1800kV motor. It offers great performance, superpower, and stunning efficiency. These motors are ideal for medium-sized quadcopters with 8 to 10 inch propellers. Use this to create powerful and efficient quadcopters.

Perfect for our F450 quadcopter frame. Our 30A ESCs can be utilized to power the motor.

Specifications

• KV: 1800
• No load Current : 10 V : 0.5 A.
• Current Capacity: 12A/60s
• No Load Current @ 10V: 0.5A
• Of Cells: 2-3 Li-Poly
• Motor Dimensions: 27.5 x 30mm
• Shaft Diameter: 934;3.17mm
• Shaft diameter : 3.175mm.
• Minimum ESC Specification: 18A (30A Suggested)
• Thrust @ 3S with 1045 propeller: 1000gms approx
• Thrust @ 3S with 0945 propeller: 650gms approx
• Thrust @ 3S with 0845 propeller: 550gms approx
