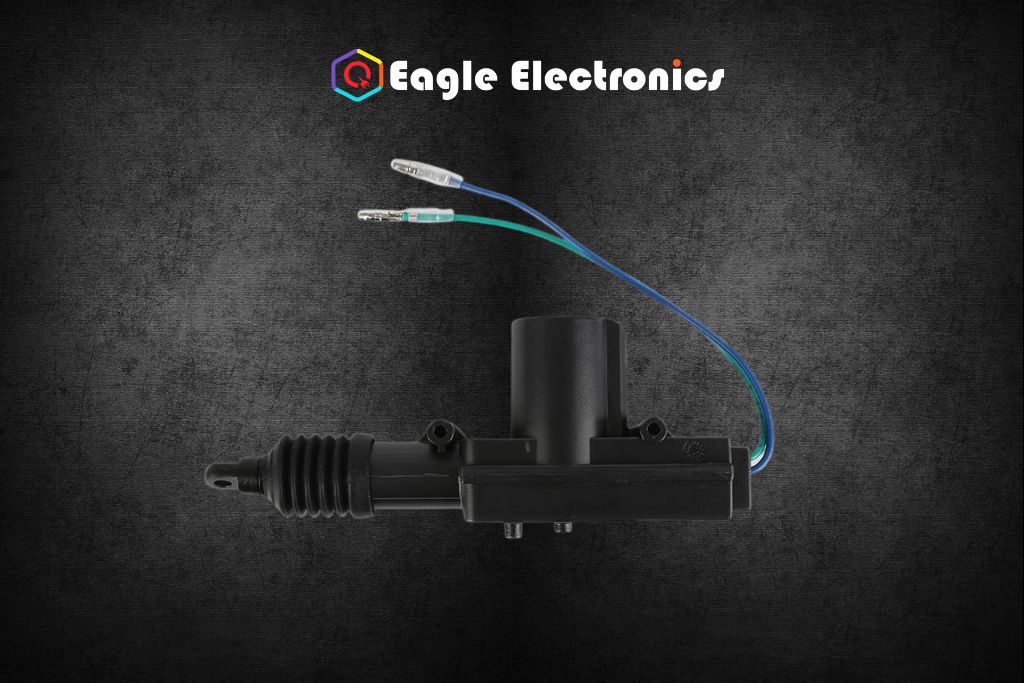

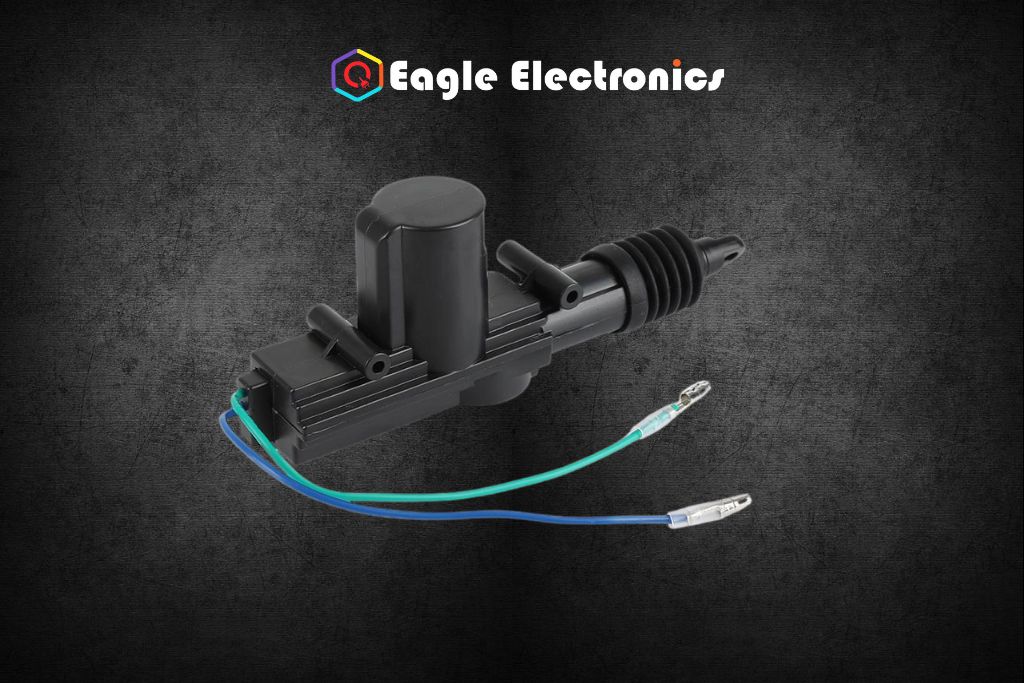

12V Door Lock Actuator

This DC6-12V Door Lock can be used for car door locking, etc.  It is steady, durable, and energy-saving, and it has a long lifespan. With its anti-theft and shockproof design, the lock is better than other kinds of locks. After connecting the wires, when the current is available, the electric lock can control the door’s opening and closing.

Specifications

•        Heavy-duty 2-wire door lock actuator
•        Colour: Black
•        Material: Metal & Plastic
•        voltage: DC6-12V
•        Working temperature: -20°C-+70°C
•        Current consumption: 0.15A-2.22A
•        Endurance (up and down): 100,000 times + Push and pull
•        Force: 4kg
•        Travel distance: 20mm
•        Wire length: 16cm / 6.3in
•        Actuator size: approx. 58x 27. 3x147mm
•        Actuator weight: approx. 96g.
