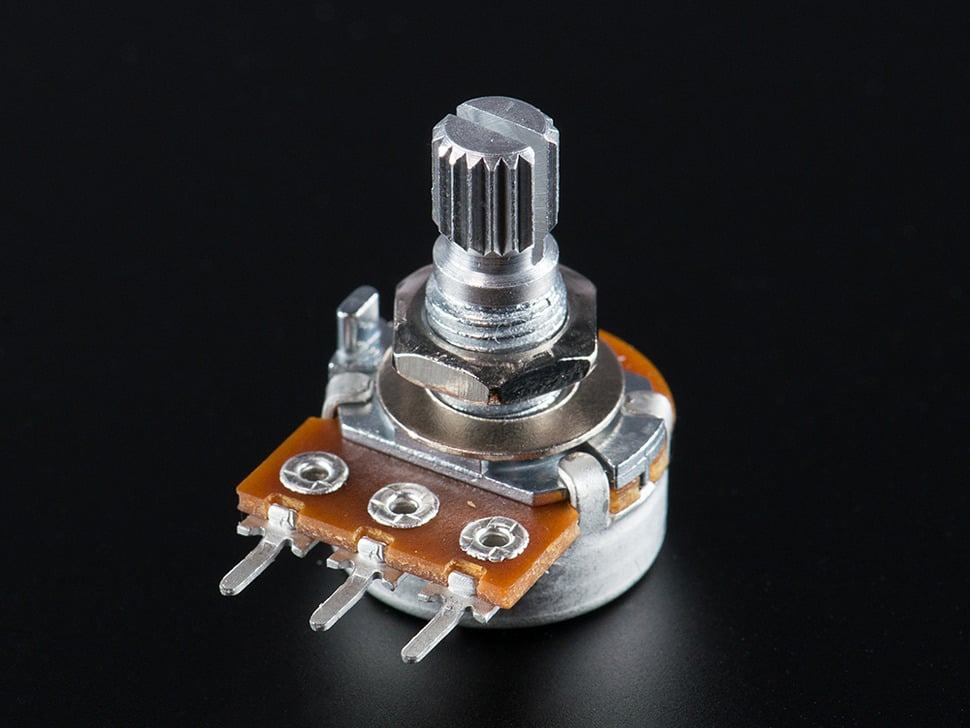

10K Ohm Linear Rotary Potentiometer

An adjustable potentiometer can open up many interesting user interfaces. Turn the pot and the resistance changes. Connect VCC to an outer pin, GND to the other, and the center pin will have a voltage that varies from 0 to VCC depending on the rotation of the pot. Hook the center pin to an ADC on a microcontroller and get a variable input from the user.

Specifications

• Potentiometer Resistance Value:10K Ohms
• Adjustment Type: Top Adjustment
• Rotation Type: Single Linear
• Knurled Shaft Length:20mm
• Mounting Thread Diameter : 7mm
• Base Size : 16 x 7.3mm / 0.63″ x 0.29″(D*H)
• Mounting Type: Through Hole
• Material: Metal
• Net Weight : 13g

Package Content

1 x 10K Ohm Linear Rotary Potentiometer
