Product details

Low-power transceivers called MAX485 are used in RS-485 and RS-422 communication. One driver and one receiver are included in the IC. The MAX485’s driver slew rates are unrestricted and can go as high as 2.5Mbps. When unloaded or fully loaded with deactivated drivers, these transceivers consume between 120A and 500A of supply current. A single 5V supply powers every component. Thermal shutdown circuitry that converts the driver outputs into a high-impedance state protects drivers against excessive power dissipation and short-circuit current limiting. If the input is open circuit, the receiver input features a fail-safe mechanism that ensures a logic-high output. Applications for half-duplex are catered for by the MAX485.

Specifications

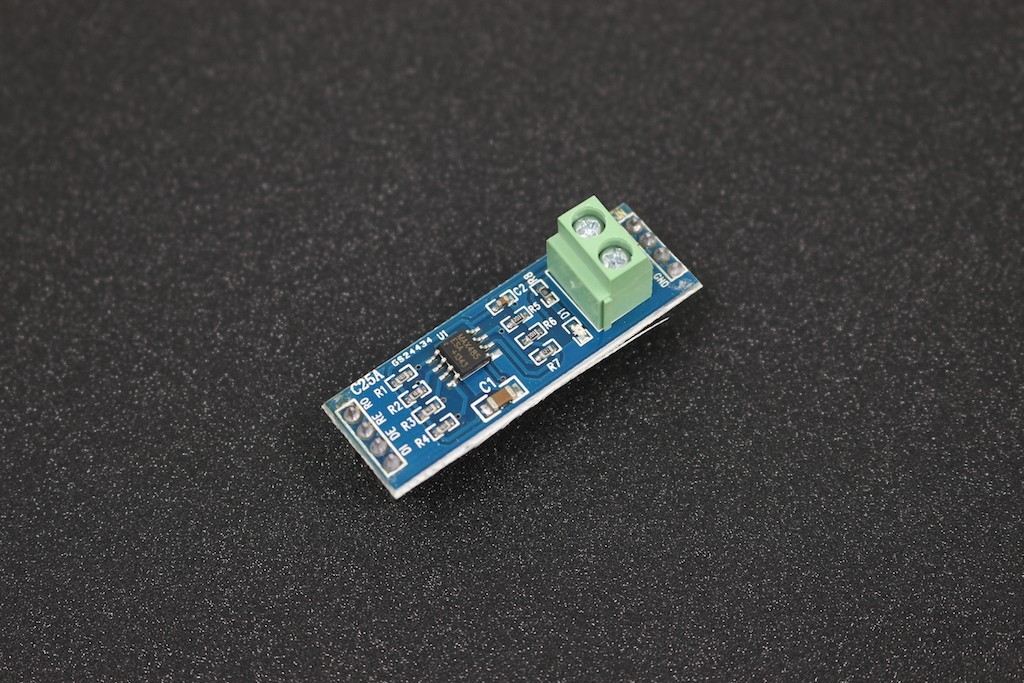

On-board MAX485 chip, low-power, Slew-Rate Transceiver
RS485 is brought out to 5.08 (mm) pitch 2P terminal for easy wiring RS-485 communication
All pins can be controlled by the microcontroller
120R terminating resistor on board
Power LED Indication
54mm Pitch interfacing.
Working voltage: 5V
Board size: 44 (mm) x14 (mm)
Weight: 4g.
