PIC16F877A-EE643-K5R1

The PIC16F877A features 256 bytes of EEPROM data memory, self programming, an ICD, 2 Comparators, 8 channels of 10-bit Analog-to-Digital (A/D) converter, 2 capture/compare/PWM functions, the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and a Universal Asynchronous Receiver Transmitter (USART). All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications.

Specifications

• Program Memory Type: Flash
• Program Memory (KB):14
• CPU Speed (MIPS):5
• RAM Bytes: 368
• Data EEPROM (bytes):256
• Digital Communication Peripherals: 1-UART, 1-SPI, 1-I2C1-MSSP(SPI/I2C)
• Capture/Compare/PWM Peripherals: 2 Input Capture, 2 CCP,
• Timers: 2 x 8-bit, 1 x 16-bit
• ADC: 8ch, 10-bit
• Comparators: 2
• Temperature Range (C):-40 to 125
• Operating Voltage Range (V):2 to 5.5

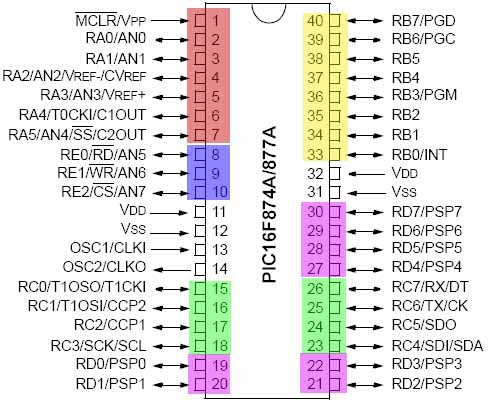

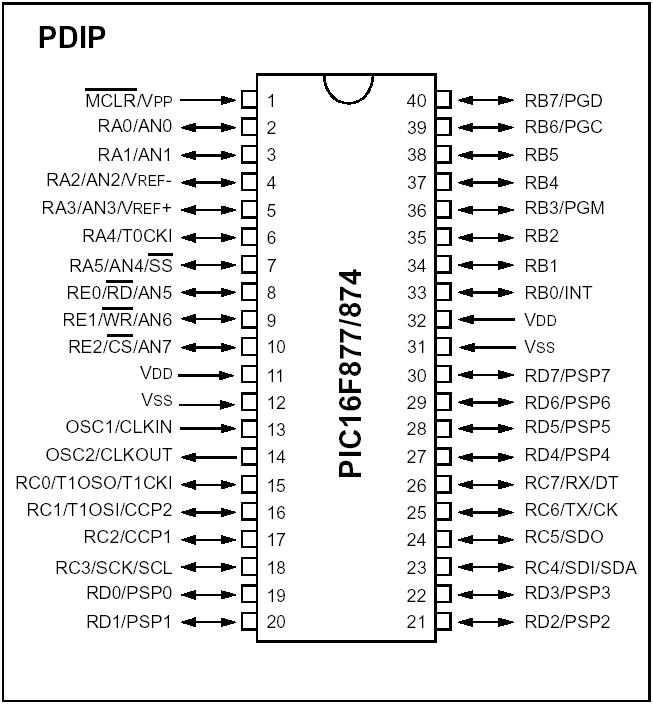

• Pin Count: 40.
