Product details

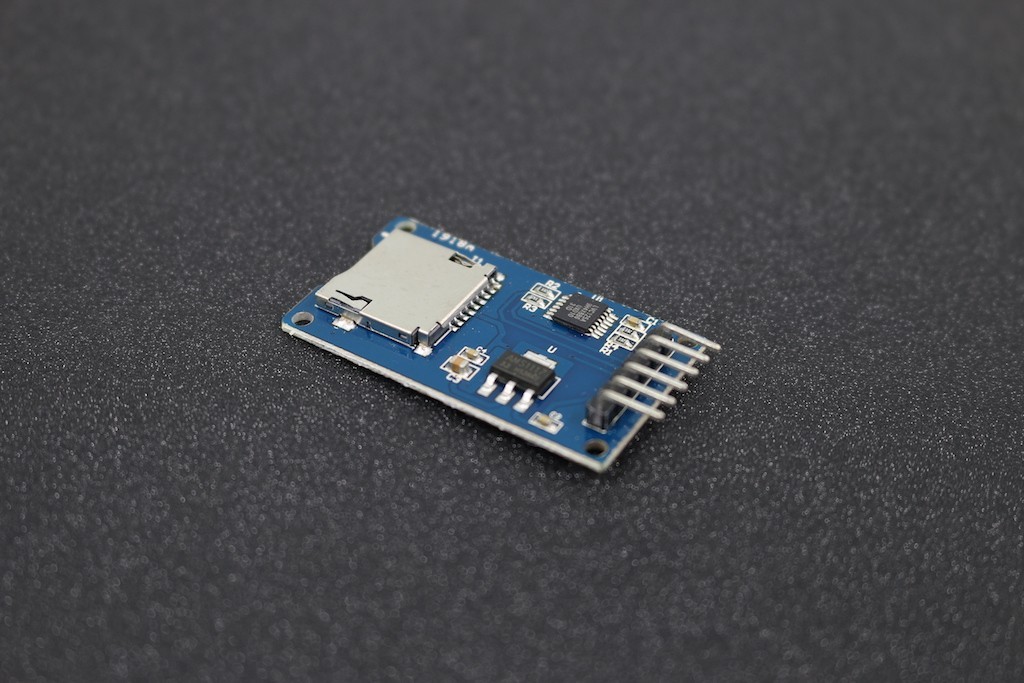

This module (MicroSD Card Adapter) is a Micro SD card read/write module via the file system driver and SPI interface, SCM system to complete read or writes a file in the MicroSD card. Arduino users can directly use the Arduino IDE comes with SD card library card is done initializing and reading and writing
Specifications
- Supply Voltage VCC : 5V
- Current Electricity : 80mA
- Interface Level : 3.3V or 5V
- supports Micro SD, Micro SDHC card (high card)
- onboard level conversion circuit that interfaces level can be either 5V or 3.3V
- power supply for 4.5V~5.5V, onboard 3.3V voltage regulator circuit
- communication interface to the standard SPI interface
- 4 M2 screw holes for easy installation
- PCB Dimensions: 42mm x 1.5xmm 24mm
- Weight: 5g
