Product details

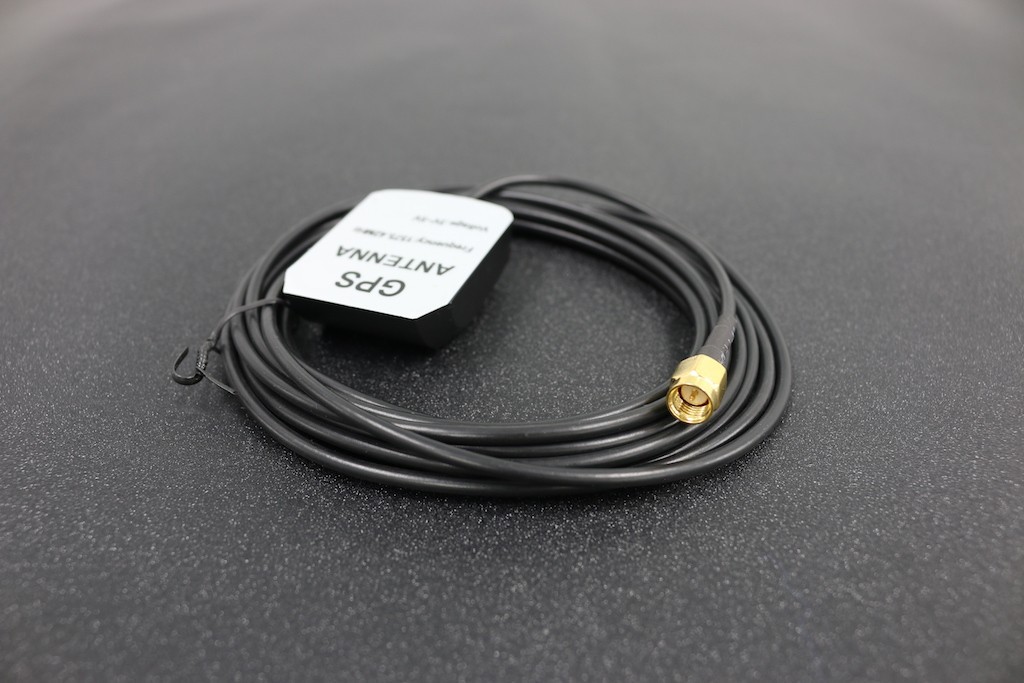

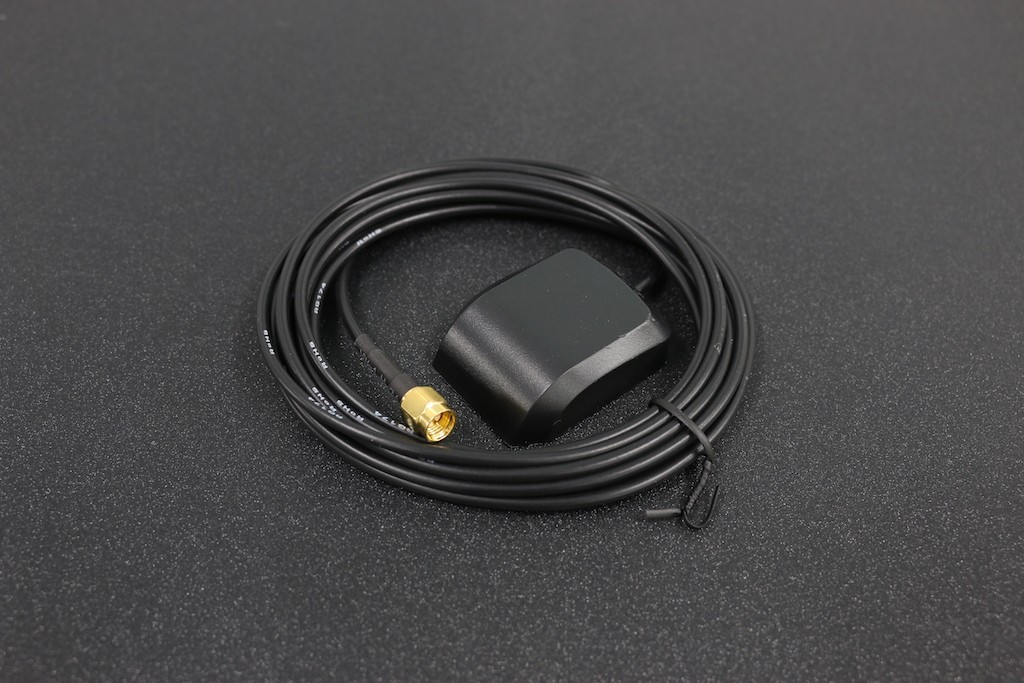

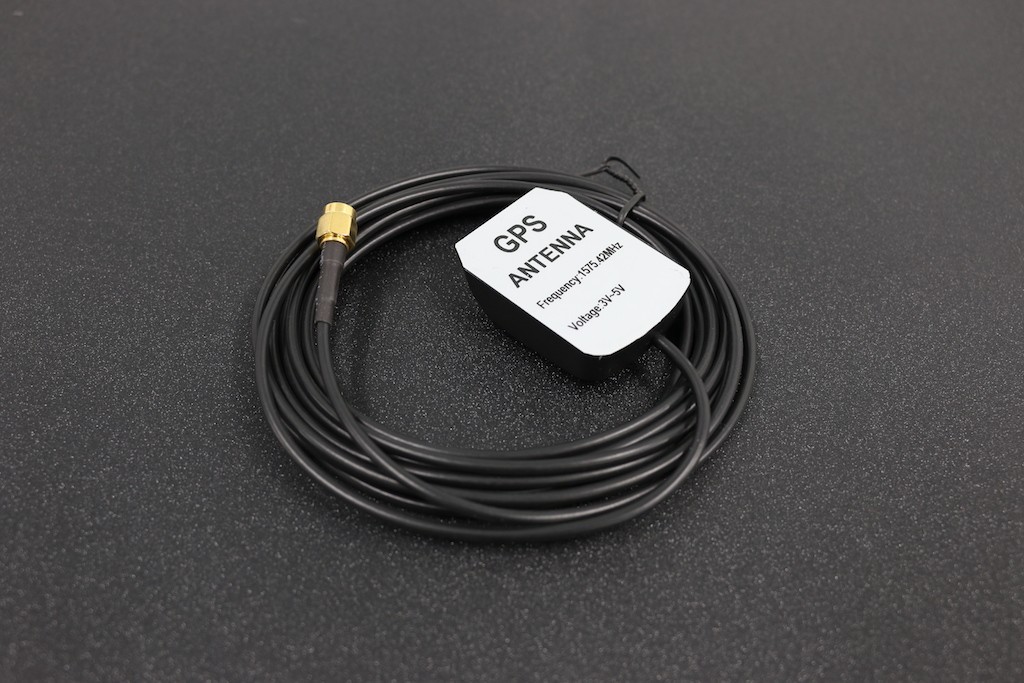

This GPS/GLONASS GNSS Antenna combines signals from GPS and GLONASS systems to provide great location accuracy for applications that require it. Because of its small size, this antenna can be employed in any space-constrained setting. This antenna can be used to improve GPS signals in an indoor project using a Raspberry Pi HAT or Arduino Shield and a 3-meter long cable. The antenna features a flat magnetic surface that can be used to keep it in place temporarily, or it can be permanently attached to any surface using Double Sided Tape.
Specifications
- Center Frequency: 1575.42 ± 3MHz
- Output VSWR: <2.0
- Band width: 20MHz
- Impedance: 50 Ohms
- Polarization: RHCP
- LNA gain (without cable): 28 ±2dB type (3.3 to 5V)
- Noise figure: <2dB (maximum) (at 3.3V)
- Voltage: 3.3 to 5V DC
- DC current: 50mA (maximum)
- Working power: 300mW (minimum) and 1.5W (maximum)
- Cable Length: 3 Meter
- Cable: RG174
- Connector: SMA male
- Mounting: magnetic base
- Housing: black matte
- Working temperature: -40 to +85°C
- Humidity: 95 to 100% RH
- Weatherproof: IP67
- Size: 37 x 17 x 49mm
- Weight: 60g
