Product details

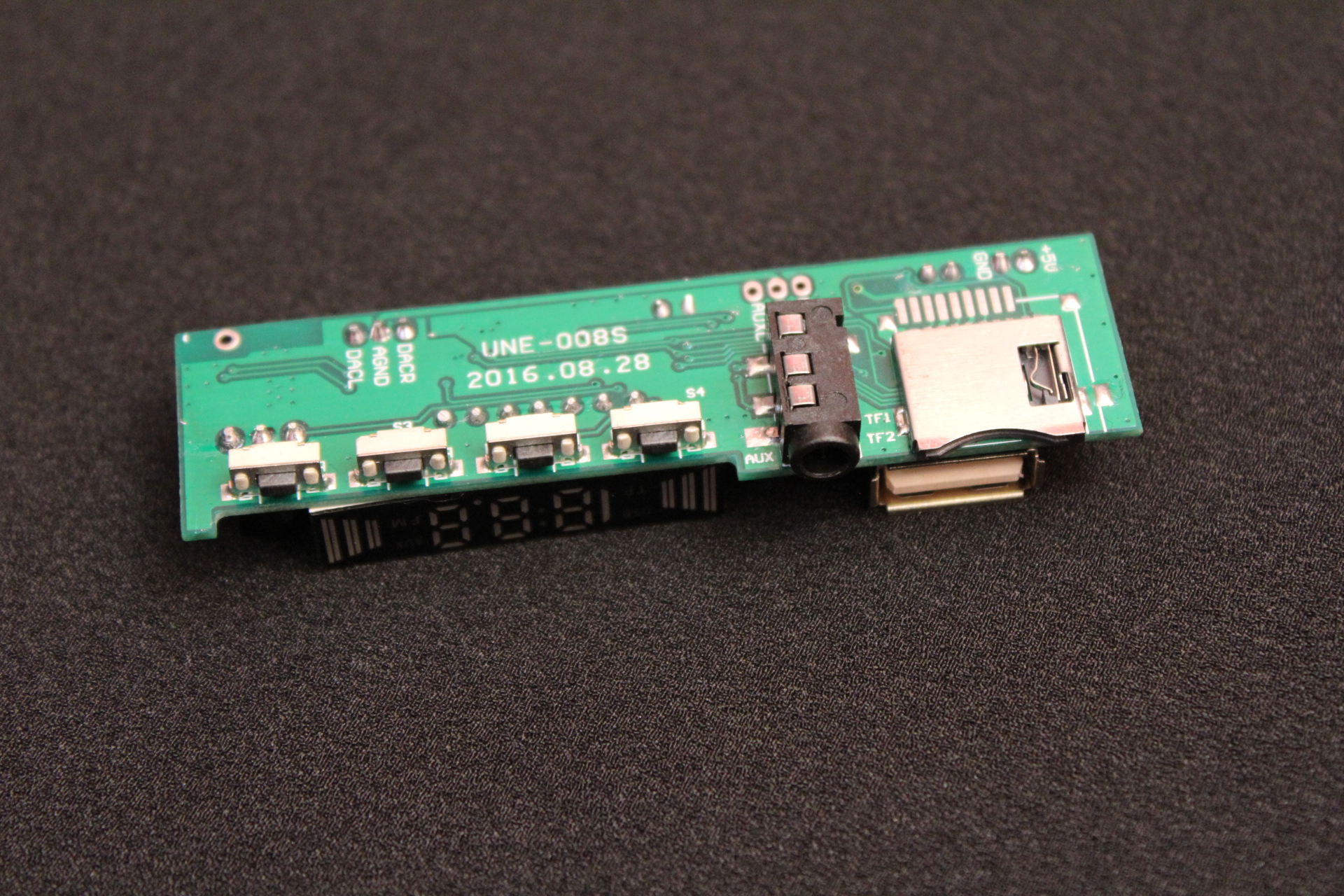

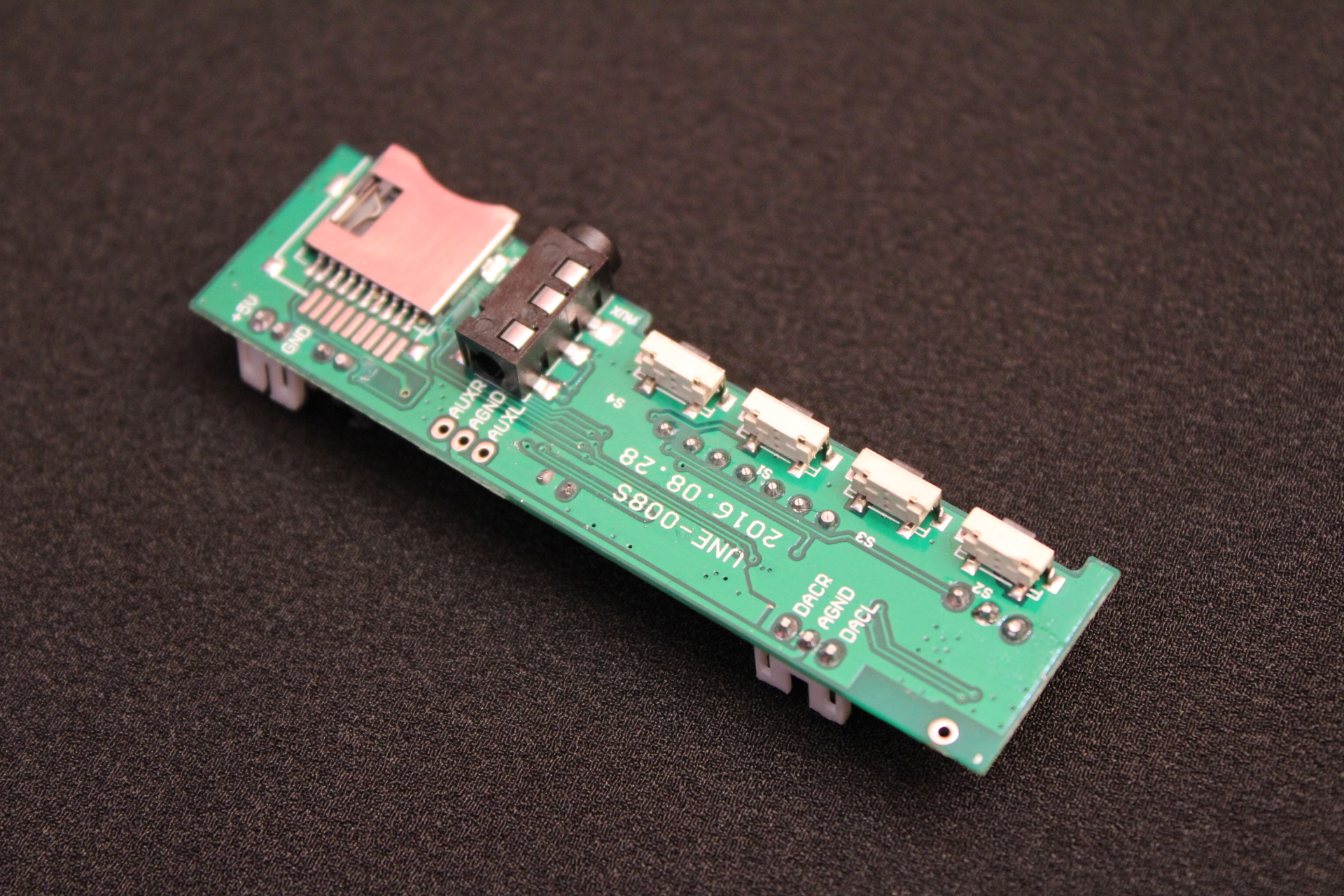

This is a Great Circuit Board for Audio System with Wonderful Sound Quality. It Need to be connected with Amplifier Board, Then Able to Drive Speakers. It Play Music via USB Flash Disk or SD Card as You Wish. FM/USB/SD/Line in Different Modes Can be switched by Remote Control or Button. You Can DIY Your Own Music Audio System Right Now.
Specifications
- Input Supply: 5V/2A (If you want use this unit with 12V DC power supply then you should need “LM7805 Regulator IC” to convert 12V DC to 5V DC power)
- Support FM /USB /MP3/AUX/SD
- FM Function: 87.5~108MHZ (Frequency Range)
- Resume Function
- Song Number Display
- Song Selection Mode
- Forward and Backward Selection
- IR Remote Control
- External Antenna Connection for FM
- LCD Screen Displays Audio File Information & Frequency
- Digital Volume Level Display
- Volume Up /Down Buttons
- Support: 32-320kbps MP3 Songs
- Support: FAT32, FAT16 File System
- Brand: VIRE / AL-FINE
- S/N: 65dB
- Auto-Search Station: 22-28dB
- Frequency Response: (90HZ~15KHZ)
- Distortion: 0.2%
- Output: 550MV
- Separation: 45dB
- PCB Dimensions:75.7mmx1mmx20mm
- Module Weight: 9g.
Package Includes
1 x Embedded FM USB MP3 Audio Board with LCD Display
1 x Remote Control
2 x Connection Wire Clip
1 x Module fixing Panel
1 x 7805 voltage regulator
Note: This is only an Embedded FM USB MP3 Audio Board Module & You should need an Amplifier to con
