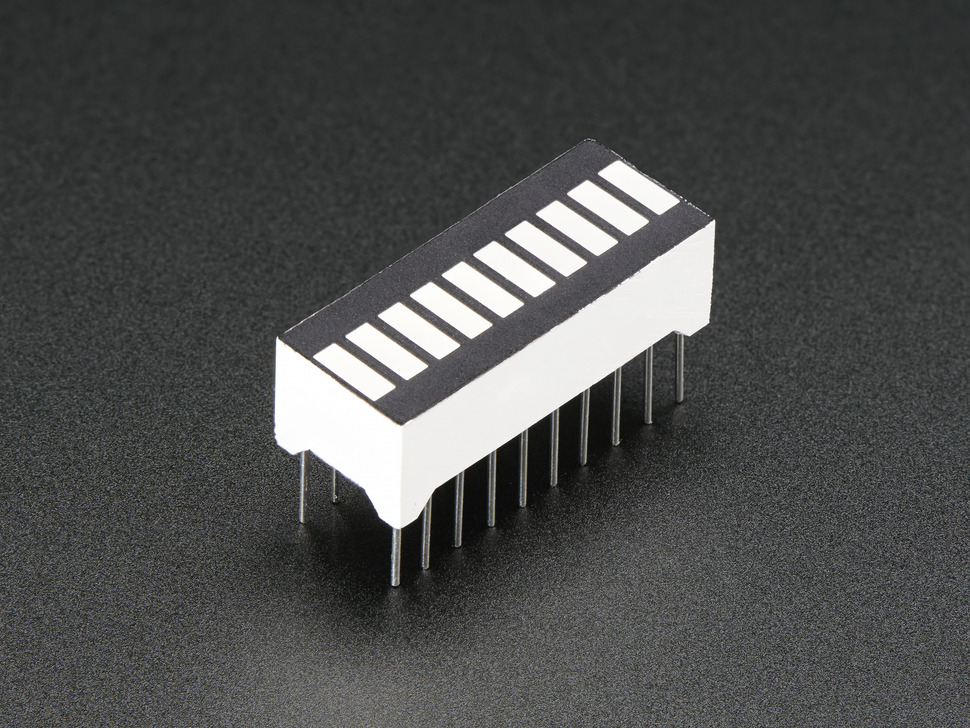

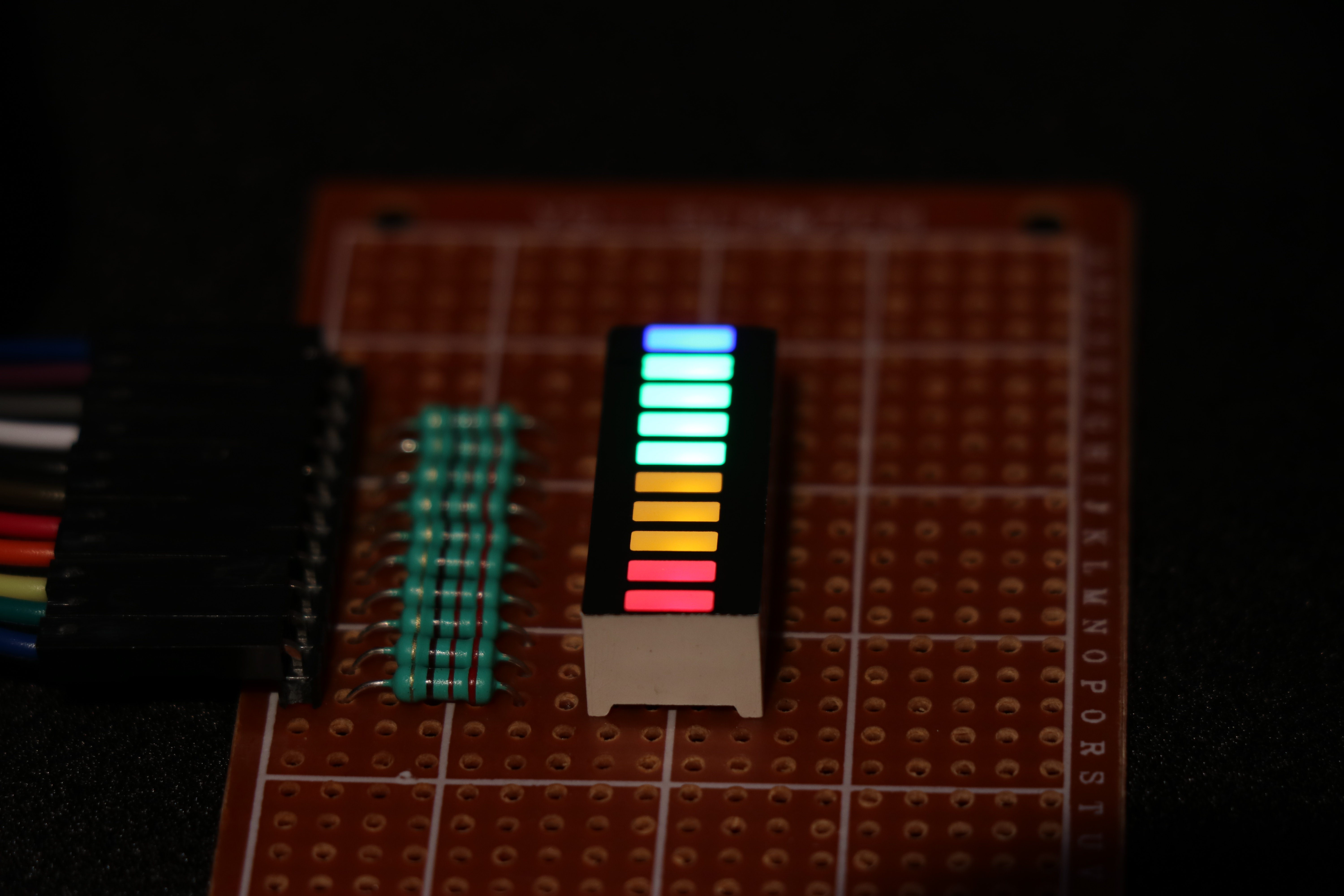

10 Segment Led Bar graph Light Display -(Red Yellow Green Blue)

These 10 segment bar graph LEDs have many uses. With a compact footprint, simple hook-up, they are easy for prototyping or finished products. Essentially, they are 10 individual blue LEDs housed together, each with an individual anode and cathode connection.

Specification

• 10 Segment LED Bar Graph Indicators DIP
• Colours: 1xBlue/ 4*Green/3*Yellow/ 2*Red
• Forward Current (Per Segment): 20mA
• Voltage:Red-1.95V/Green-2.90V/Yellow-1.95V/Blue-2.95V
• Max Reverse Voltage: 5v
• Dimensions: 25.5mm x 10mm x 6.5mm / 1″ x 0.4″ x 0.25″
• Height with Pins: 14.5mm / 0.6″
• Weight: 3g.
